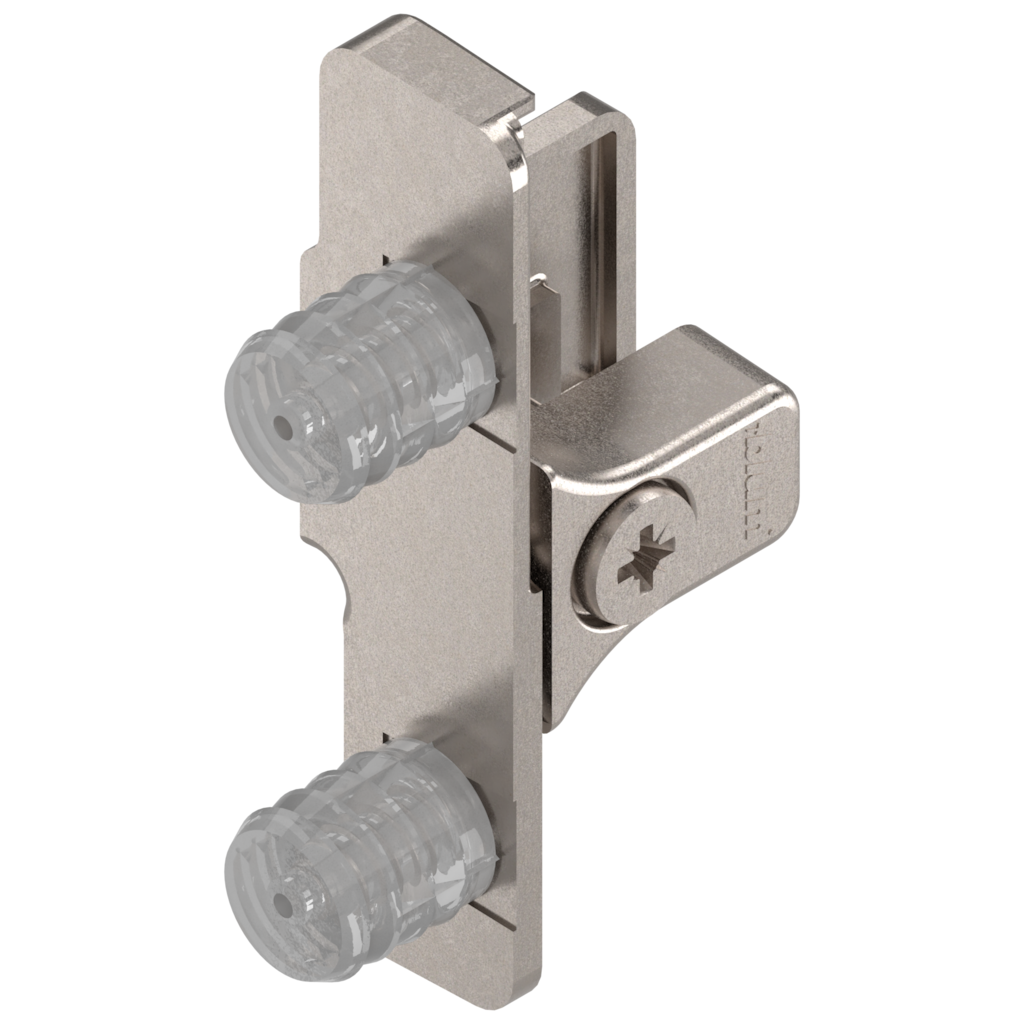

METABOX front fixing bracket
METABOX front fixing bracket
Ident no: 01123573
Part no.: ZSF.1610.04FROB RE 10 NI
Box qty: 10 pcs
  • Front fixing: knock-in
METABOX front fixing bracket, knock-in, right, Nickel plated
Ident no: 01123573 Part no.: ZSF.1610.04FROB RE 10 NI Box qty: 10 pcs
  • Front fixing: knock-in
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Die Frontbefestigung verbindet die Front der Holzschublade fest mit der Zarge und gewährleistet beim Öffnen und Schließen des Auszugs maximale Stabilität.
description Technical data expand_more

Technical data

type
front fixing bracket
box systems
METABOX
Front fixing
knock-in
height
59.5 mm
width
16.5 mm
