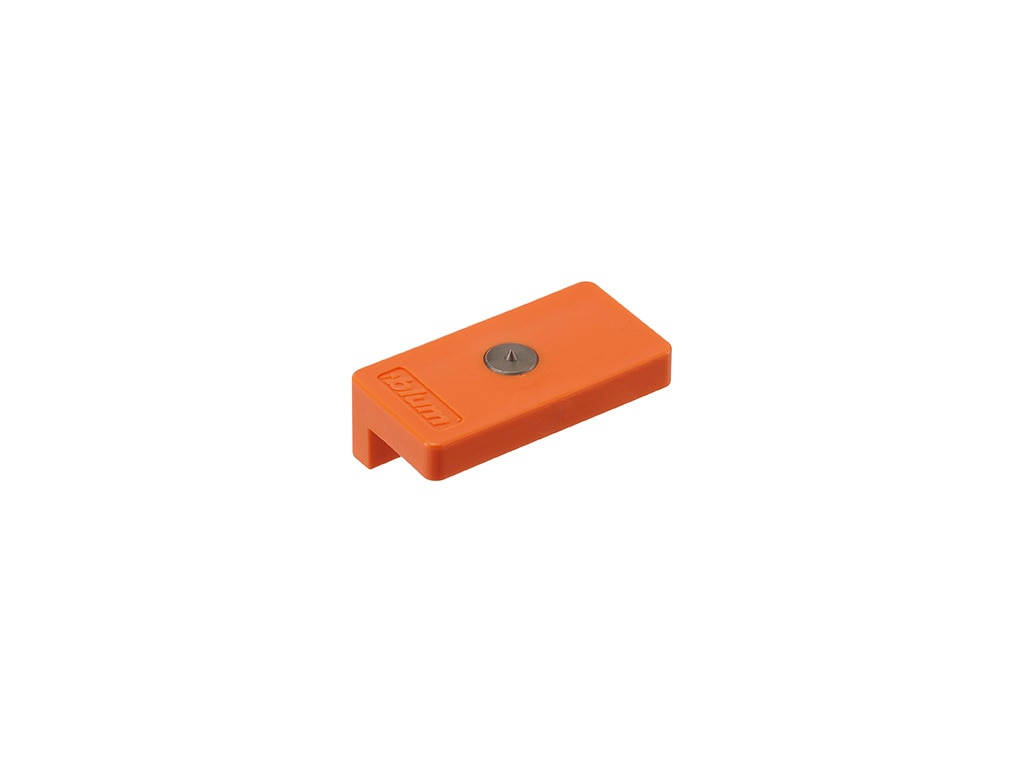

MINIFIX positioning template for catch plates
Positioning template, for Catch plates, for TIP-ON for doors, Orange
Ident no: 04713009
Part no.: 65.5210.01KOE-LEH V1 OR
Box qty: 1 pc
  • type: positioning template

Positioning template, for Catch plates, for TIP-ON for doors, Orange

Ident no: 04713009 Part no.: 65.5210.01KOE-LEH V1 OR Box qty: 1 pc
  • type: positioning template
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Einfache und exakte Maßübertragung: Lehren und Werkzeuge unterstützen bei der Verarbeitung aller Blum-Produkte. Sie haben sich als Helfer bei der Montage bestens bewährt. Sowohl in der Werkstatt als auch beim Kunden vor Ort wird die Kombination von Präzision und praktischem Nutzen sehr geschätzt.
description Technical data expand_more

Technical data

type
positioning template
colour/surface
orange
material
nylon/steel
scope of delivery
1x marking template
template suitable for
catch plates
