MODUL mounting plate cruciform blind corner hinge

chevron_left Back

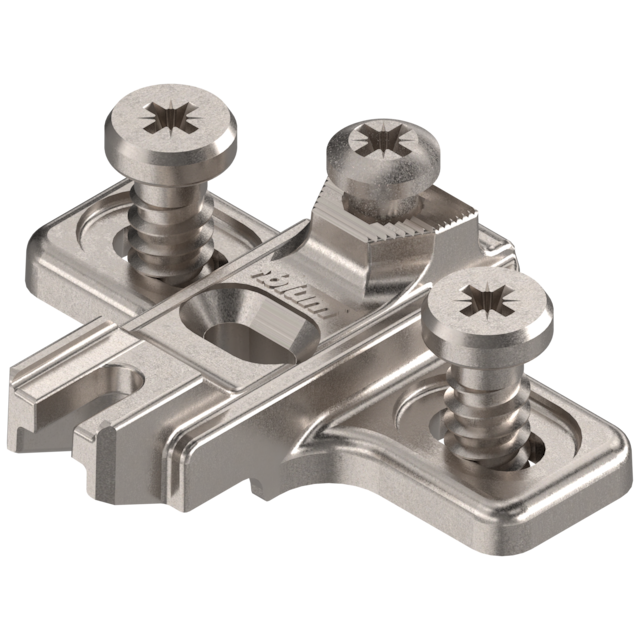

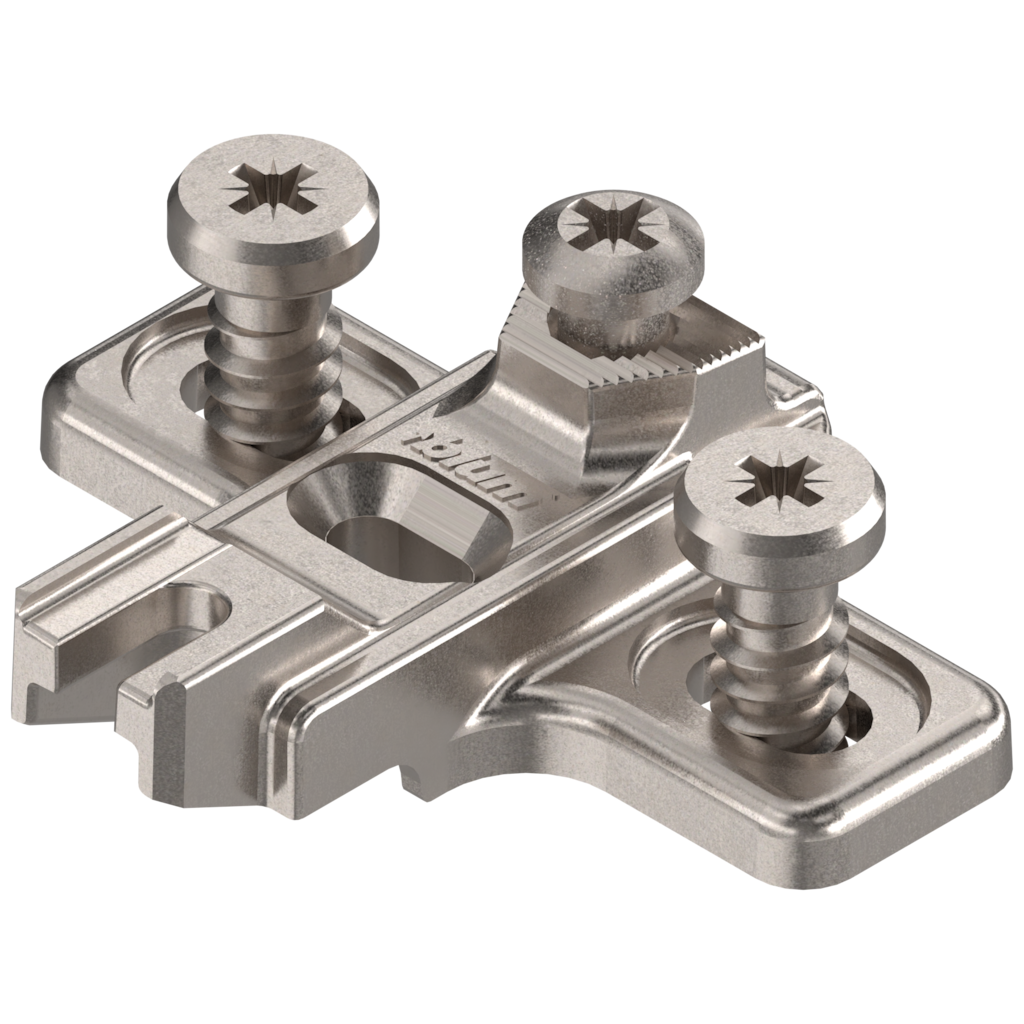

MODUL mounting plate cruciform blind corner hinge
MODUL mounting plate, cruciform, 3 mm, zinc, for screwing on with pre-mounted system screws, HA: elongated hole, Nickel plated
Ident no: 06325543
Part no.: 199.8130 MPL V50 NI
Box qty: 50 pcs
  • colour/surface: nickel plated
  • mounting plate spacing: 3 mm
  • fixing method: for screwing on with pre-mounted system screws
  • height adjustment type: with elongated hole
  • material: zinc
  • mounting system: MODUL
  • suitable for dual application: no
  • suitable for hinge application: blind corner hinge
  • shape: cruciform

MODUL mounting plate, cruciform, 3 mm, zinc, for screwing on with pre-mounted system screws, HA: elongated hole, Nickel plated

Ident no: 06325543 Part no.: 199.8130 MPL V50 NI Box qty: 50 pcs
  • colour/surface: nickel plated
  • mounting plate spacing: 3 mm
  • fixing method: for screwing on with pre-mounted system screws
  • height adjustment type: with elongated hole
  • material: zinc
  • mounting system: MODUL
  • suitable for dual application: no
  • suitable for hinge application: blind corner hinge
  • shape: cruciform
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Die MODUL-Montageplatte mit kombinierter Aufschiebe- und Schraubtechnik gewährleistet eine stabile und sichere Befestigung von Scharnieren. Sie ermöglicht eine präzise Justierung, vereinfacht die Montage von Türen und Klappen und sorgt für deren optimale Funktion.
description Technical data expand_more

Technical data

type
mounting plate
colour/surface
nickel plated
mounting plate spacing
3 mm
fixing method
for screwing on with pre-mounted system screws
height adjustment type
with elongated hole
