MODUL mounting plate cruciform refrigerator facade door hinge

chevron_left Back
MODUL mounting plate cruciform refrigerator facade door hinge

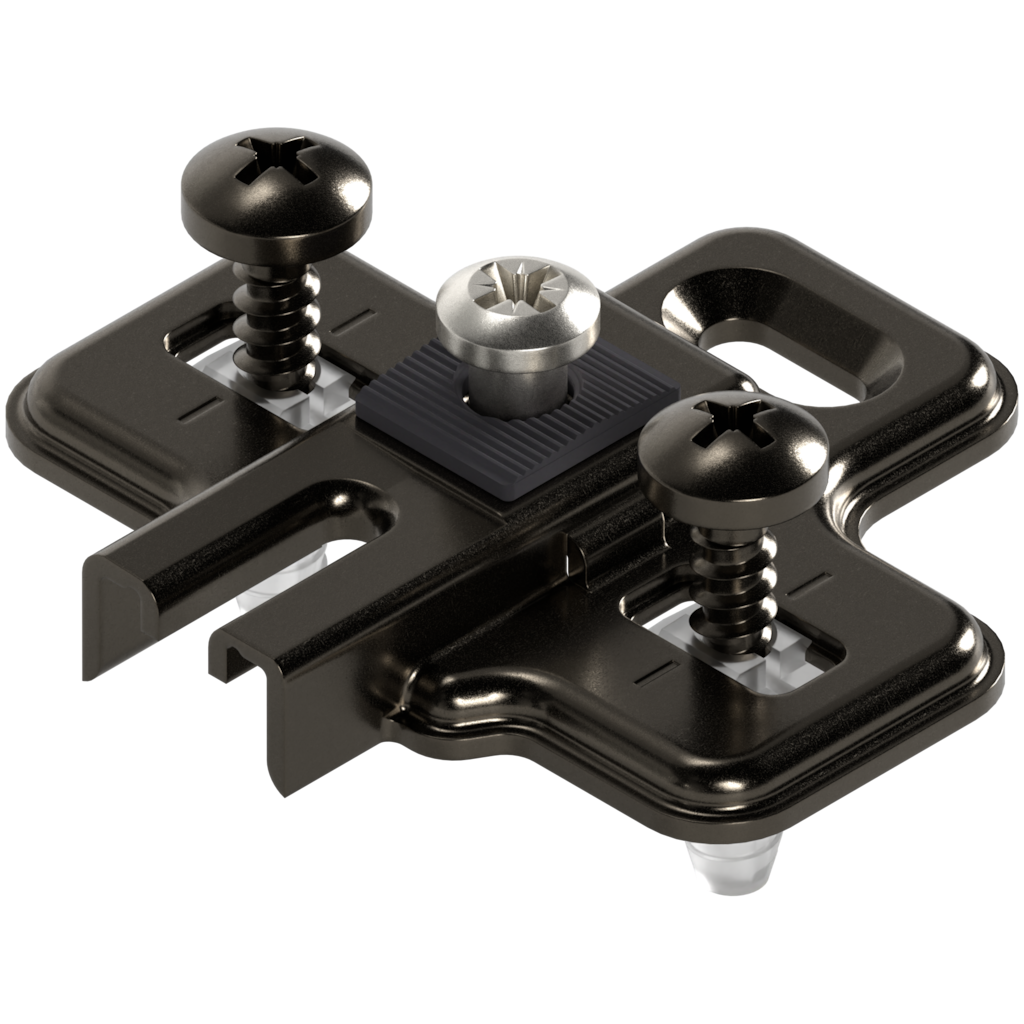

MODUL mounting plate, cruciform, 0 mm, steel, with EXPANDO split dowels, HA: elongated hole, Onyx black
Ident no: 02174538
Part no.: 194K6100E DUEPL V500 ONS
Box qty: 500 pcs
  • colour/surface: onyx black
  • mounting plate spacing: 0 mm
  • fixing method: with EXPANDO split dowels
  • height adjustment type: with elongated hole
  • material: steel
  • mounting system: MODUL
  • suitable for dual application: no
  • suitable for hinge application: refrigerator facade door hinge
  • shape: cruciform

MODUL mounting plate, cruciform, 0 mm, steel, with EXPANDO split dowels, HA: elongated hole, Onyx black

Ident no: 02174538 Part no.: 194K6100E DUEPL V500 ONS Box qty: 500 pcs
  • colour/surface: onyx black
  • mounting plate spacing: 0 mm
  • fixing method: with EXPANDO split dowels
  • height adjustment type: with elongated hole
  • material: steel
  • mounting system: MODUL
  • suitable for dual application: no
  • suitable for hinge application: refrigerator facade door hinge
  • shape: cruciform
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Die MODUL-Montageplatte mit kombinierter Aufschiebe- und Schraubtechnik gewährleistet eine stabile und sichere Befestigung von Scharnieren. Sie ermöglicht eine präzise Justierung, vereinfacht die Montage von Türen und Klappen und sorgt für deren optimale Funktion.
description Technical data expand_more

Technical data

type
mounting plate
colour/surface
onyx black
mounting plate spacing
0 mm
diameter of fixing hole
5.00 mm
fixing method
with EXPANDO split dowels
