MODUL mounting plate cruciform standard hinge

chevron_left Back

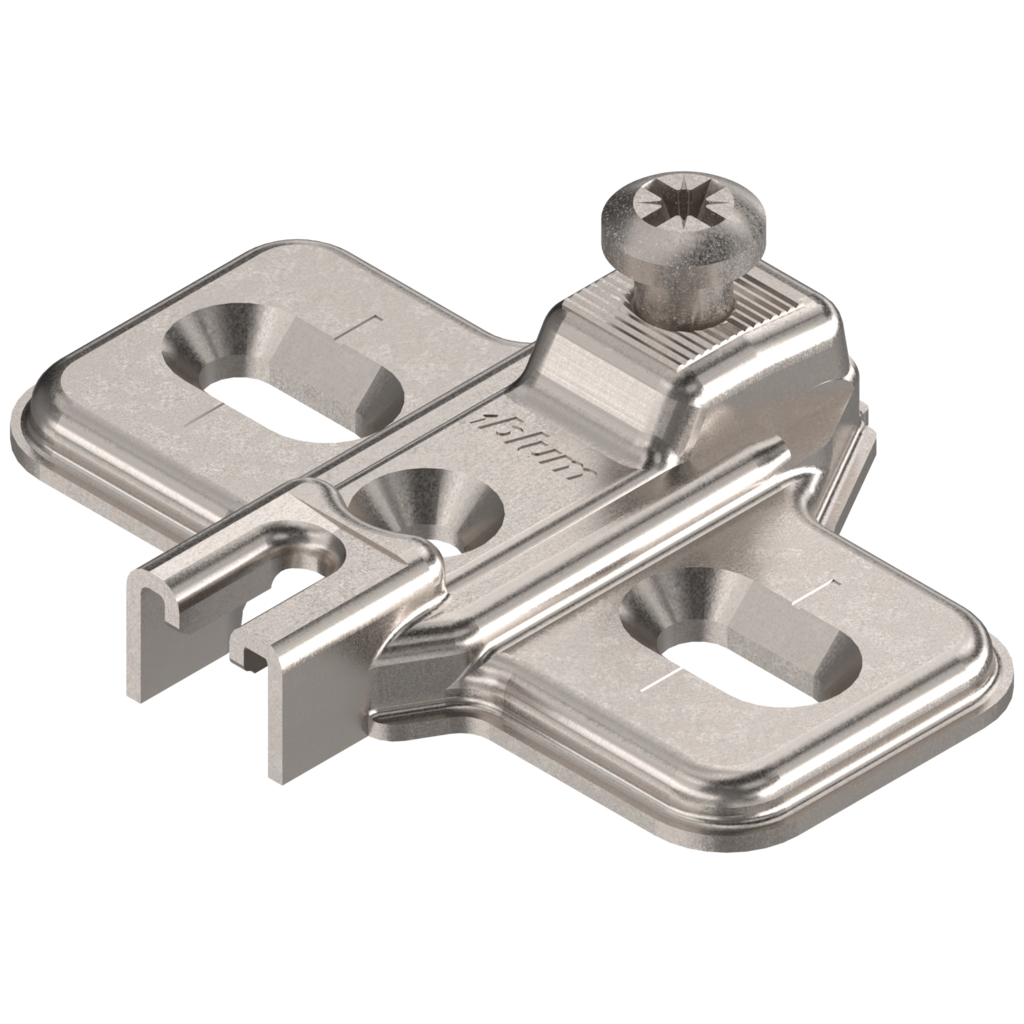

MODUL mounting plate cruciform standard hinge
MODUL mounting plate, cruciform, 0 mm, steel, for screwing on with chipboard screws, HA: elongated hole, Nickel plated
Ident no: 06863103
Part no.: 193L6100 MPL V500 NI
Box qty: 500 pcs
  • colour/surface: nickel plated
  • mounting plate spacing: 0 mm
  • fixing method: for screwing on with chipboard screws
  • height adjustment type: with elongated hole
  • material: steel
  • mounting system: MODUL
  • suitable for dual application: no
  • suitable for hinge application: standard hinge
  • shape: cruciform

MODUL mounting plate, cruciform, 0 mm, steel, for screwing on with chipboard screws, HA: elongated hole, Nickel plated

Ident no: 06863103 Part no.: 193L6100 MPL V500 NI Box qty: 500 pcs
  • colour/surface: nickel plated
  • mounting plate spacing: 0 mm
  • fixing method: for screwing on with chipboard screws
  • height adjustment type: with elongated hole
  • material: steel
  • mounting system: MODUL
  • suitable for dual application: no
  • suitable for hinge application: standard hinge
  • shape: cruciform
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Die MODUL-Montageplatte mit kombinierter Aufschiebe- und Schraubtechnik gewährleistet eine stabile und sichere Befestigung von Scharnieren. Sie ermöglicht eine präzise Justierung, vereinfacht die Montage von Türen und Klappen und sorgt für deren optimale Funktion.
description Technical data expand_more

Technical data

type
mounting plate
colour/surface
nickel plated
mounting plate spacing
0 mm
fixing method
for screwing on with chipboard screws
height adjustment type
with elongated hole
