Positioning template for CABLOXX front locking bracket for LEGRABOX

chevron_left Back

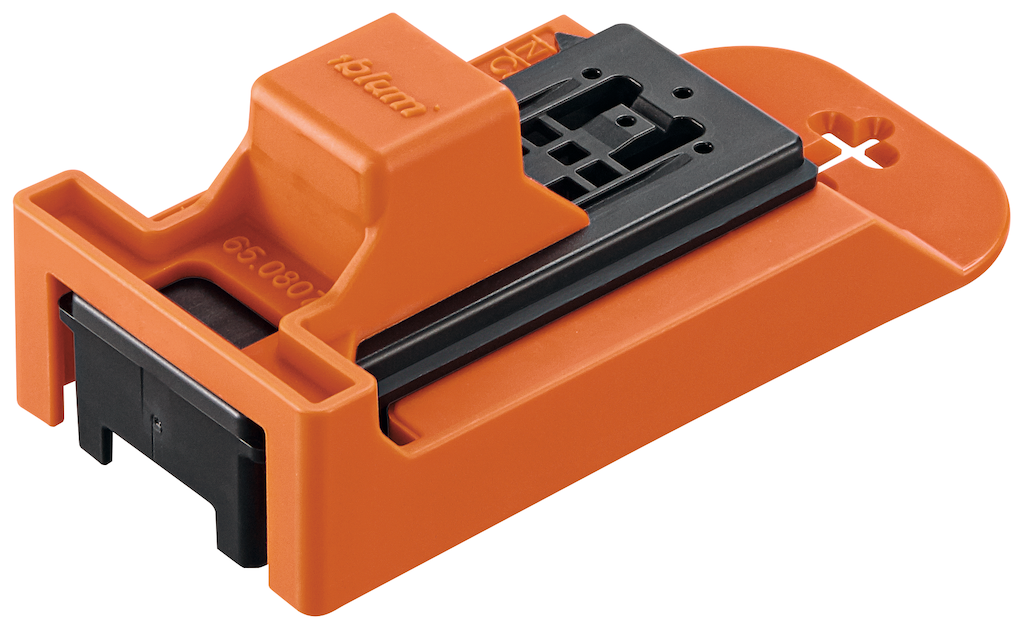

Positioning template for CABLOXX front locking bracket for LEGRABOX
Positioning template, for CABLOXX front locking bracket for LEGRABOX, black/orange
Ident no: 03278732
Part no.: 65.0807 LEHRE LBX S/O
Box qty: 1 pc

Positioning template, for CABLOXX front locking bracket for LEGRABOX, black/orange

Ident no: 03278732 Part no.: 65.0807 LEHRE LBX S/O Box qty: 1 pc
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Einfache und exakte Maßübertragung: Lehren und Werkzeuge unterstützen bei der Verarbeitung aller Blum-Produkte. Sie haben sich als Helfer bei der Montage bestens bewährt. Sowohl in der Werkstatt als auch beim Kunden vor Ort wird die Kombination von Präzision und praktischem Nutzen sehr geschätzt.
description Technical data expand_more

Technical data

type
positioning template
colour/surface
black/orange
material
nylon
scope of delivery
1x marking template
template suitable for
CABLOXX front locking bracket for LEGRABOX
