Routing template for AVENTOS HKi

chevron_left Back

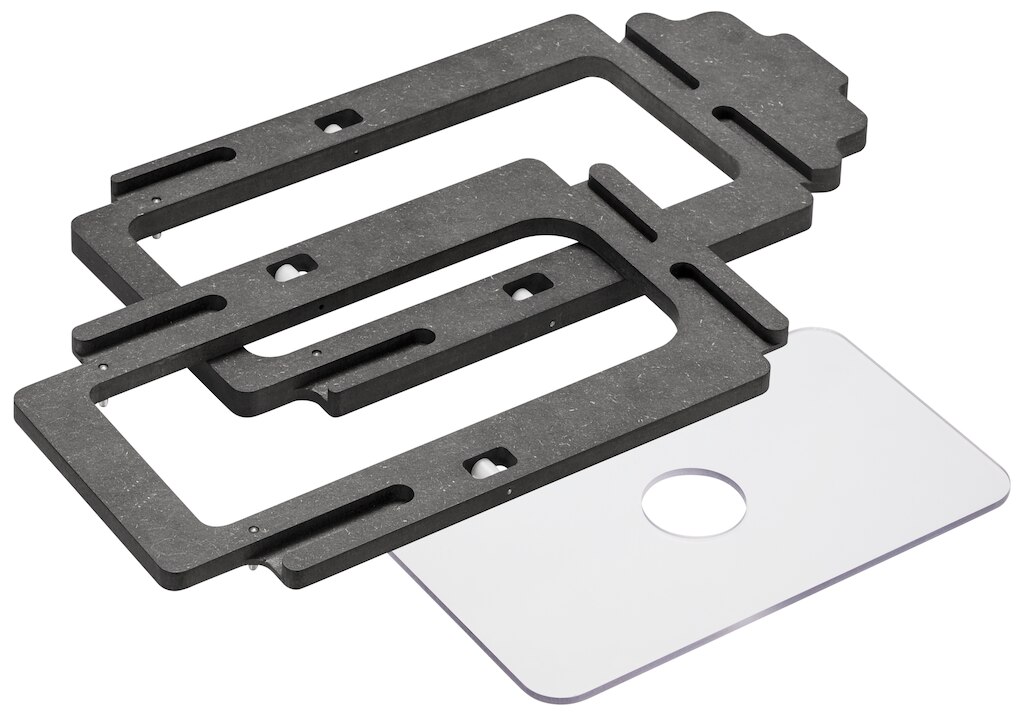

Routing template for AVENTOS HKi
Routing template set for AVENTOS HKi, for Cabinet sides, for AVENTOS lift mechanism
Ident no: 08210111
Part no.: 65.5840 SCHABLO
Box qty: 1 pc
  • type: routing template

Routing template set for AVENTOS HKi, for Cabinet sides, for AVENTOS lift mechanism

Ident no: 08210111 Part no.: 65.5840 SCHABLO Box qty: 1 pc
  • type: routing template
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Simple and precise transfer of measurements: templates and tools support the assembly of all Blum products. They have proven to be the very best aids when it comes to day-to-day assembly. They are a perfect combination of high precision and practical value which is greatly appreciated both in workshops and directly on site.
description Technical data expand_more

Technical data

type
routing template
colour/surface
dark grey
length
404 mm
material
CDF
scope of delivery
1x base plate, 2x positioninging template
