SERVO-DRIVE attachment bracket suitable for quantity of drive units 1

chevron_left Back

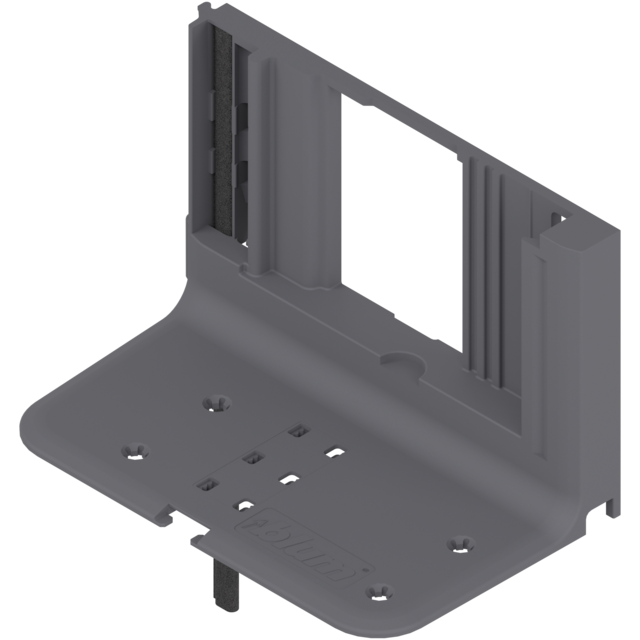

SERVO-DRIVE attachment bracket suitable for quantity of drive units 1
SERVO-DRIVE attachment bracket for 1 drive unit, with cable (cable excess length 800 mm), R7037 dust grey
Ident no: 04805174
Part no.: Z10D0311 AUF-W 1 10R737
Box qty: 10 pcs
  • suitable for quantity of drive units: 1
  • shank height: 97.0 mm
  • material: nylon

SERVO-DRIVE attachment bracket for 1 drive unit, with cable (cable excess length 800 mm), R7037 dust grey

Ident no: 04805174 Part no.: Z10D0311 AUF-W 1 10R737 Box qty: 10 pcs
  • suitable for quantity of drive units: 1
  • shank height: 97.0 mm
  • material: nylon
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

The attachment bracket is used if only single pull-outs are to be operated or if the installation situation does not permit a continuous bracket profile.
description Technical data expand_more

Technical data

type
attachment bracket
installation position
bottom
suitable for quantity of drive units
1
width
161 mm
shank height
97.0 mm
