SERVO-DRIVE attachment bracket suitable for quantity of drive units 1

chevron_left Back

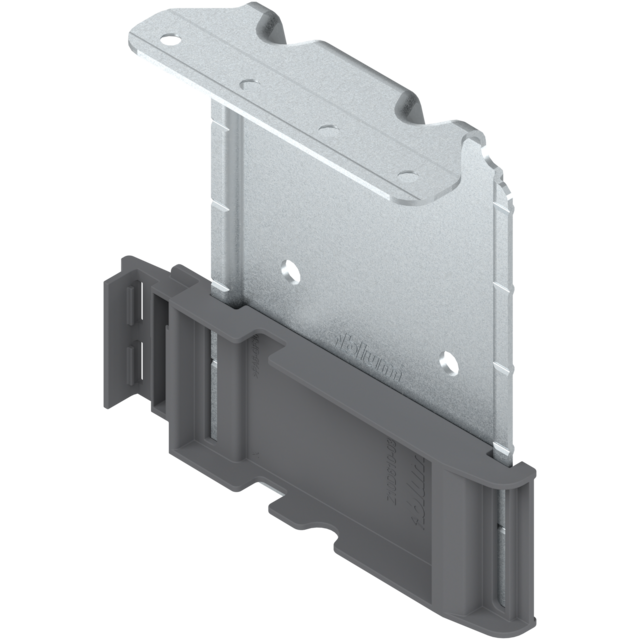

SERVO-DRIVE attachment bracket suitable for quantity of drive units 1
SERVO-DRIVE attachment bracket for 1 drive unit, set incl. accessories, R737dust grey/zinc plated
Ident no: 08010962
Part no.: Z10D6252 AW+AD O 10ST/Z
Box qty: 10 pcs
  • suitable for quantity of drive units: 1
  • shank height: 170.0 mm
  • material: steel

SERVO-DRIVE attachment bracket for 1 drive unit, set incl. accessories, R737dust grey/zinc plated

Ident no: 08010962 Part no.: Z10D6252 AW+AD O 10ST/Z Box qty: 10 pcs
  • suitable for quantity of drive units: 1
  • shank height: 170.0 mm
  • material: steel
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

The attachment bracket is used if only single pull-outs are to be operated or if the installation situation does not permit a continuous bracket profile.
description Technical data expand_more

Technical data

type
attachment bracket
installation position
top
suitable for quantity of drive units
1
width
120 mm
shank height
170.0 mm
