SERVO-DRIVE attachment bracket suitable for quantity of drive units 2

chevron_left Back

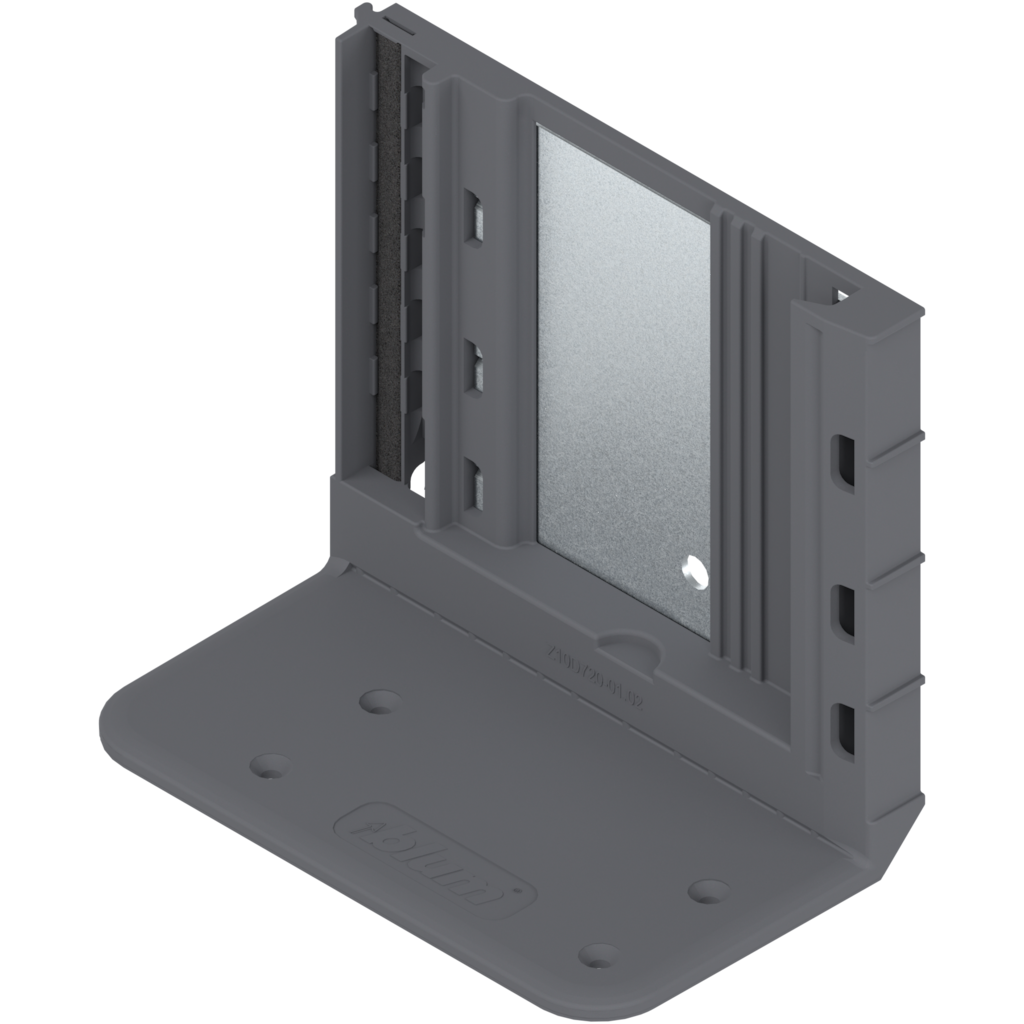

SERVO-DRIVE attachment bracket suitable for quantity of drive units 2
SERVO-DRIVE attachment bracket for 2 drive units, with cable (cable excess length 800 mm), R737dust grey/zinc plated
Ident no: 01640683
Part no.: Z10D7201.01AUF-W 2 10ST/Z
Box qty: 10 pcs
  • suitable for quantity of drive units: 2
  • shank height: 138.5 mm
  • material: nylon

SERVO-DRIVE attachment bracket for 2 drive units, with cable (cable excess length 800 mm), R737dust grey/zinc plated

Ident no: 01640683 Part no.: Z10D7201.01AUF-W 2 10ST/Z Box qty: 10 pcs
  • suitable for quantity of drive units: 2
  • shank height: 138.5 mm
  • material: nylon
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

The attachment bracket is used if only single pull-outs are to be operated or if the installation situation does not permit a continuous bracket profile.
description Technical data expand_more

Technical data

type
attachment bracket
installation position
bottom
suitable for quantity of drive units
2
width
161 mm
shank height
138.5 mm
