SERVO-DRIVE AVENTOS SERVO-DRIVE switch HF, HK, HK top, HL, HS, HF top, HL top, HS top
SERVO-DRIVE AVENTOS SERVO-DRIVE switch HF, HK, HK top, HL, HS, HF top, HL top, HS top
Ident no.: 02471776
Part no.: 23P5020 SCHALT V20 TGR
Box qty: 20 pcs
  • colour/surface: dark grey

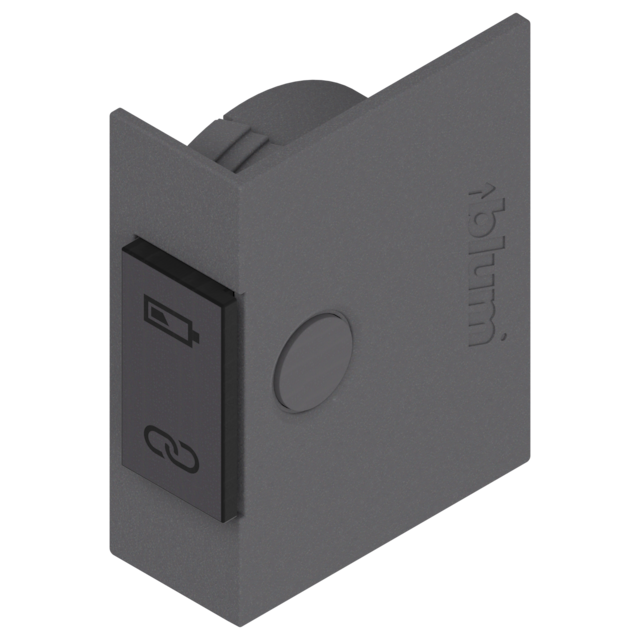

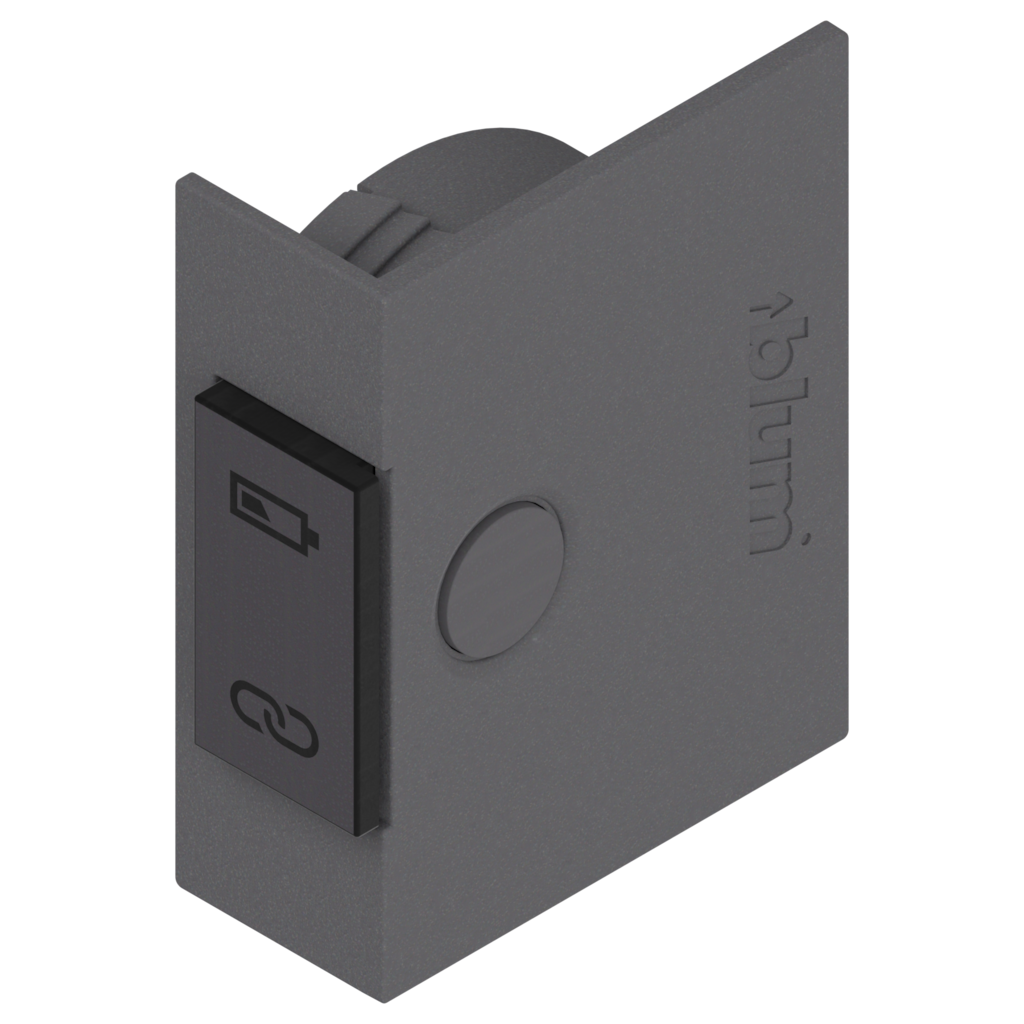

SERVO-DRIVE switch for AVENTOS, symmetrical, deep grey
Ident no.: 02471776 Part no.: 23P5020 SCHALT V20 TGR Box qty: 20 pcs
  • colour/surface: dark grey
error_outline

Please log in to see prices and availability.
  • build Technical data
  • CAD/CAM data
build Technical data expand_more

Technical data

type
SERVO-DRIVE switch
colour/surface
dark grey
input voltage
3 V
lift system
SERVO-DRIVE
material
nylon
