SERVO-DRIVE bracket profile

chevron_left Back

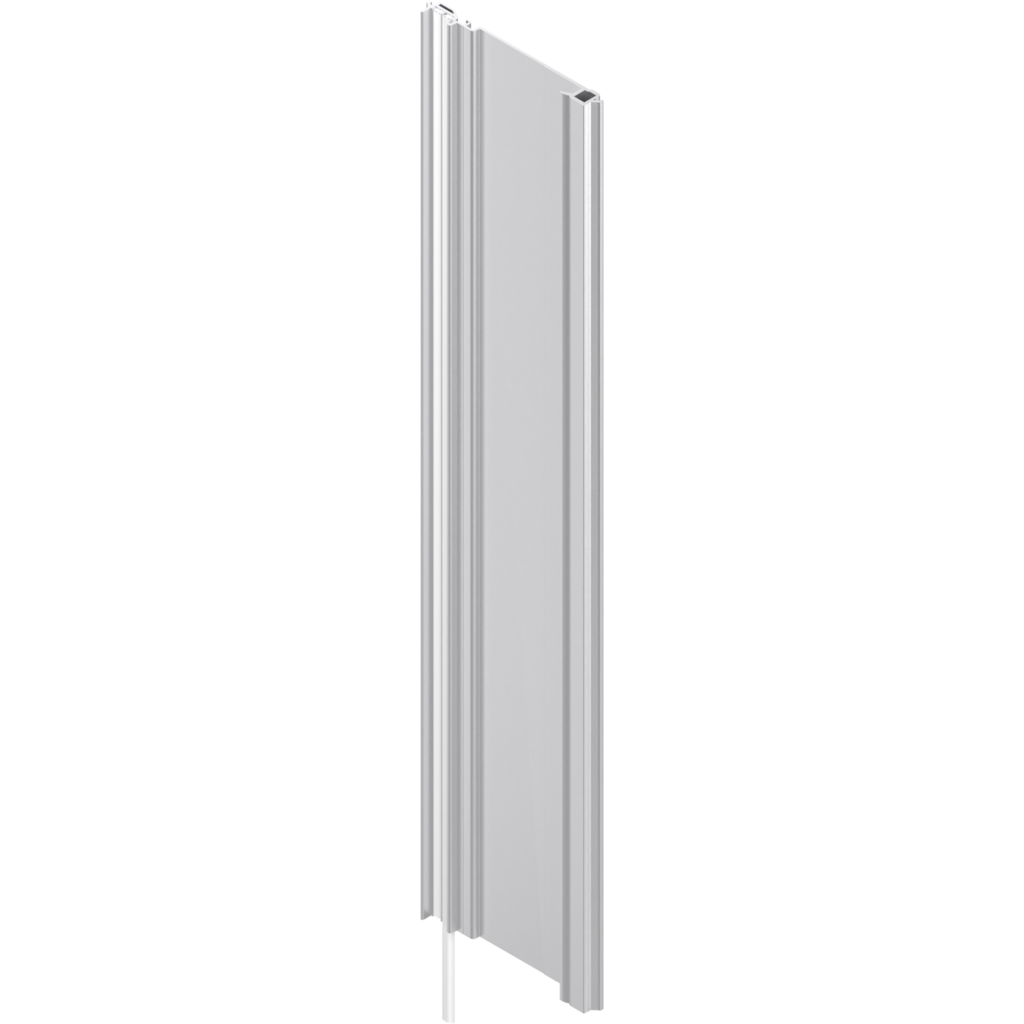

SERVO-DRIVE bracket profile
SERVO-DRIVE bracket profile vertical, length=750 mm, ICH=760-769 mm, with cable (overlay bottom 800 mm), aluminium alloy, for cutting to size
Ident no: 07466401
Part no.: Z10T750AA TPROF V10 ROH
Box qty: 10 pcs
  • type: bracket profile
  • length: 750 mm
  • cable excess length position: bottom
  • side position: left/right

SERVO-DRIVE bracket profile vertical, length=750 mm, ICH=760-769 mm, with cable (overlay bottom 800 mm), aluminium alloy, for cutting to size

Ident no: 07466401 Part no.: Z10T750AA TPROF V10 ROH Box qty: 10 pcs
  • type: bracket profile
  • length: 750 mm
  • cable excess length position: bottom
  • side position: left/right
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

The bracket profile is used to attach the drive units.
description Technical data expand_more

Technical data

type
bracket profile
box systems
SERVO-DRIVE
runner system
SERVO-DRIVE
length
750 mm
width
166 mm
