SERVO-DRIVE bracket profile

chevron_left Back

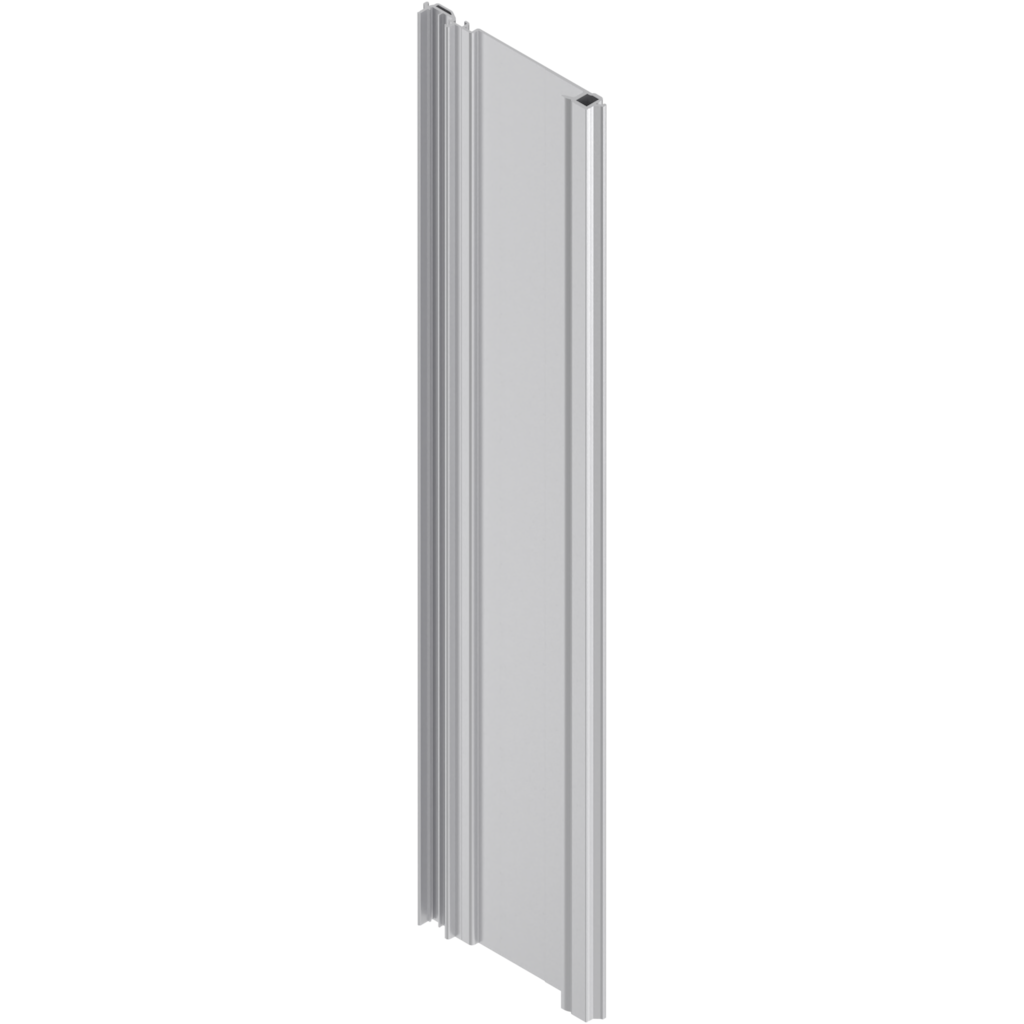

SERVO-DRIVE bracket profile
SERVO-DRIVE bracket profile vertical, length=730 mm, ICH=740-749 mm, with cable (overlay bottom 800 mm), aluminium
Ident no: 07716101
Part no.: Z10T730AA TPROF V10 ROH
Box qty: 10 pcs
  • type: bracket profile
  • length: 730 mm
  • cable excess length position: bottom
  • side position: left/right

SERVO-DRIVE bracket profile vertical, length=730 mm, ICH=740-749 mm, with cable (overlay bottom 800 mm), aluminium

Ident no: 07716101 Part no.: Z10T730AA TPROF V10 ROH Box qty: 10 pcs
  • type: bracket profile
  • length: 730 mm
  • cable excess length position: bottom
  • side position: left/right
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Das Trägerprofil dient der Befestigung der Antriebseinheiten.
description Technical data expand_more

Technical data

type
bracket profile
box systems
SERVO-DRIVE
runner system
SERVO-DRIVE
length
730 mm
width
166 mm
