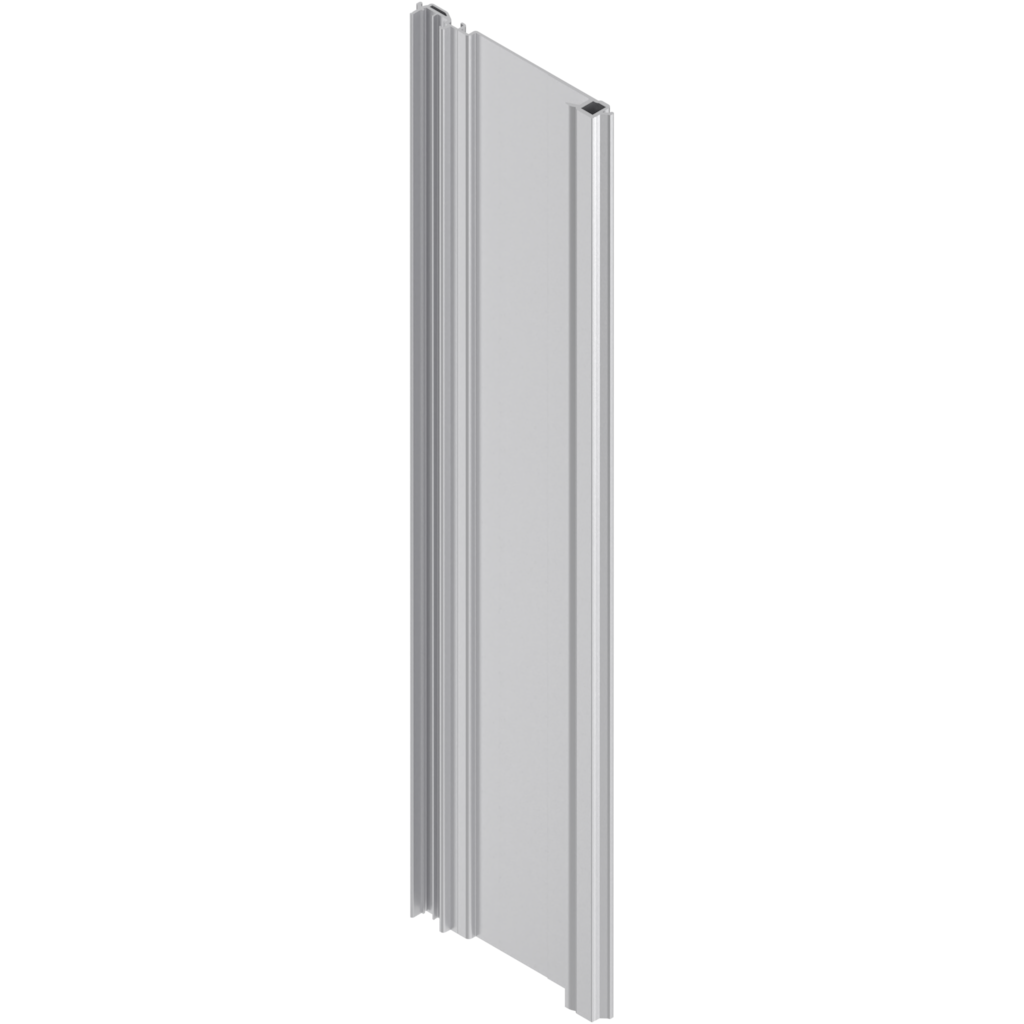

SERVO-DRIVE bracket profile

SERVO-DRIVE bracket profile
SERVO-DRIVE bracket profile
Ident no: 07716441
Part no.: Z10T670AA TPROF V10 ROH
Box qty: 10 pcs
  • type: bracket profile
  • length: 670 mm
  • cable excess length position: bottom
  • side position: left/right

SERVO-DRIVE bracket profile

  • type: bracket profile
  • length: 670 mm
  • cable excess length position: bottom
  • side position: left/right
Ident no: 07716441 Part no.: Z10T670AA TPROF V10 ROH Box qty: 10 pcs
error_outline

Please log in to see prices and availability.
description Technical data expand_more

Technical data

type
bracket profile
box systems
SERVO-DRIVE
runner system
SERVO-DRIVE
length
670 mm
width
166 mm
