SERVO-DRIVE bracket profile

chevron_left Back

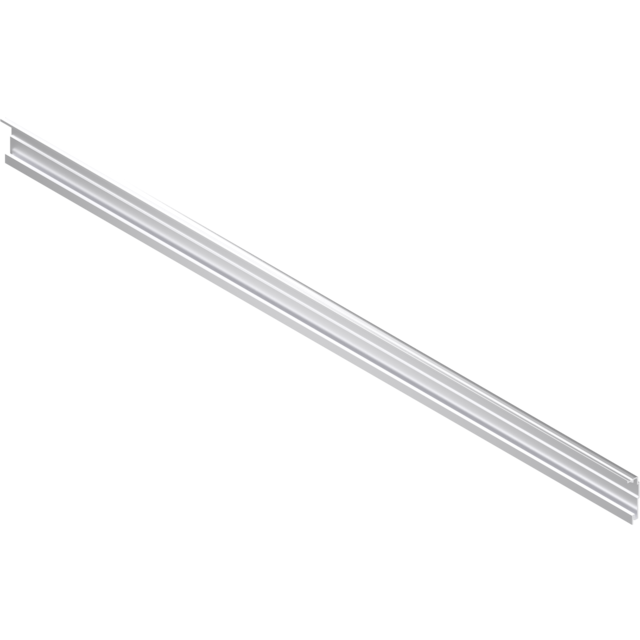

SERVO-DRIVE bracket profile
SERVO-DRIVE bracket profile horizontal, length=1143 mm, ICH=1153-1162 mm, aluminium, for cutting to size
Ident no: 07922191
Part no.: Z10T1143B TPROF-Q 10 ROH
Box qty: 10 pcs
  • length: 1143 mm
  • side position: left/right

SERVO-DRIVE bracket profile horizontal, length=1143 mm, ICH=1153-1162 mm, aluminium, for cutting to size

Ident no: 07922191 Part no.: Z10T1143B TPROF-Q 10 ROH Box qty: 10 pcs
  • length: 1143 mm
  • side position: left/right
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Das Trägerprofil dient der Befestigung der Antriebseinheiten.
description Technical data expand_more

Technical data

type
bracket profile
box systems
SERVO-DRIVE
runner system
SERVO-DRIVE
length
1143 mm
width
74.5 mm
