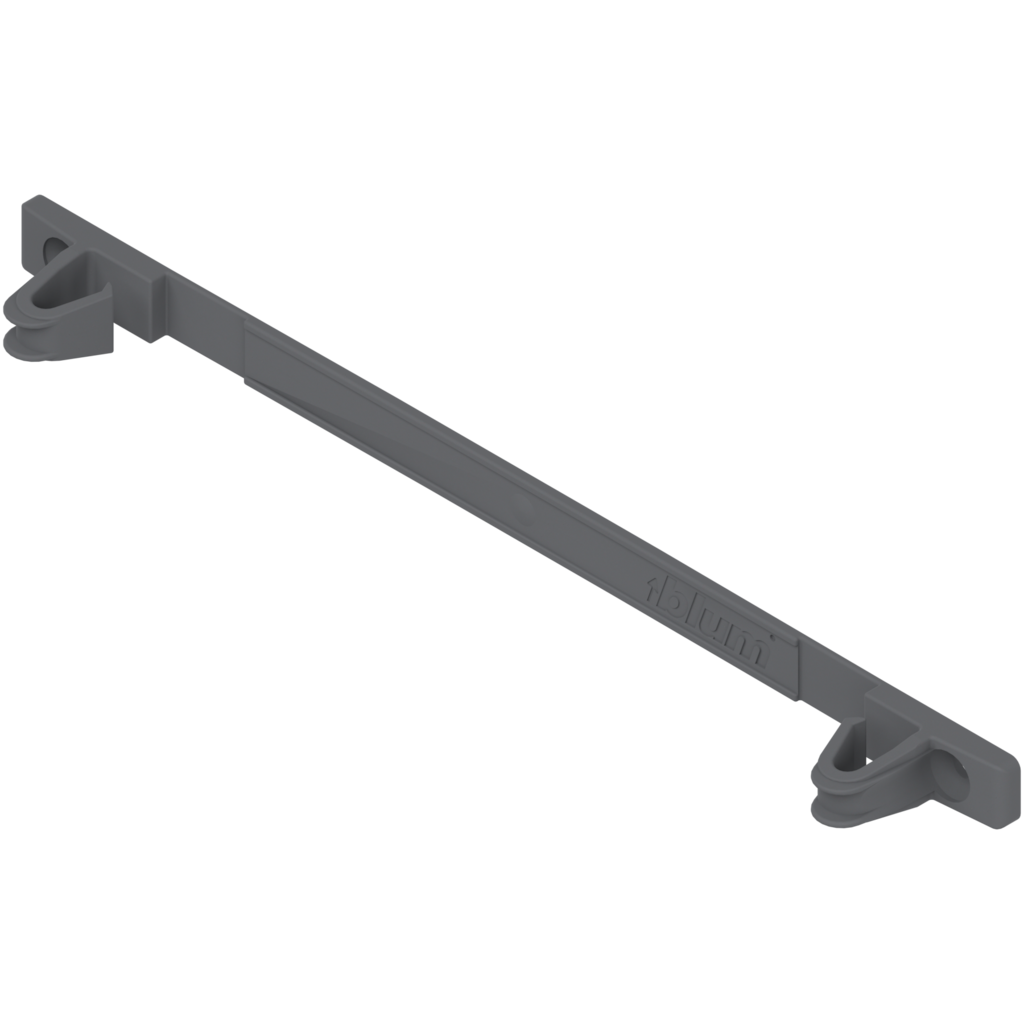

SERVO-DRIVE bracket profile attachment rear

SERVO-DRIVE bracket profile attachment rear
SERVO-DRIVE bracket profile attachment rear
Ident no: 03070684
Part no.: Z10D3001.01TPR-A H 50R737
Box qty: 50 pcs
  • type: bracket profile attachment
  • installation position: rear
  • side position: left/right

SERVO-DRIVE bracket profile attachment rear

  • type: bracket profile attachment
  • installation position: rear
  • side position: left/right
Ident no: 03070684 Part no.: Z10D3001.01TPR-A H 50R737 Box qty: 50 pcs
error_outline

Please log in to see prices and availability.
description Technical data expand_more

Technical data

type
bracket profile attachment
installation position
rear
side position
left/right
material
nylon
colour/surface
RAL 7037 dust grey
