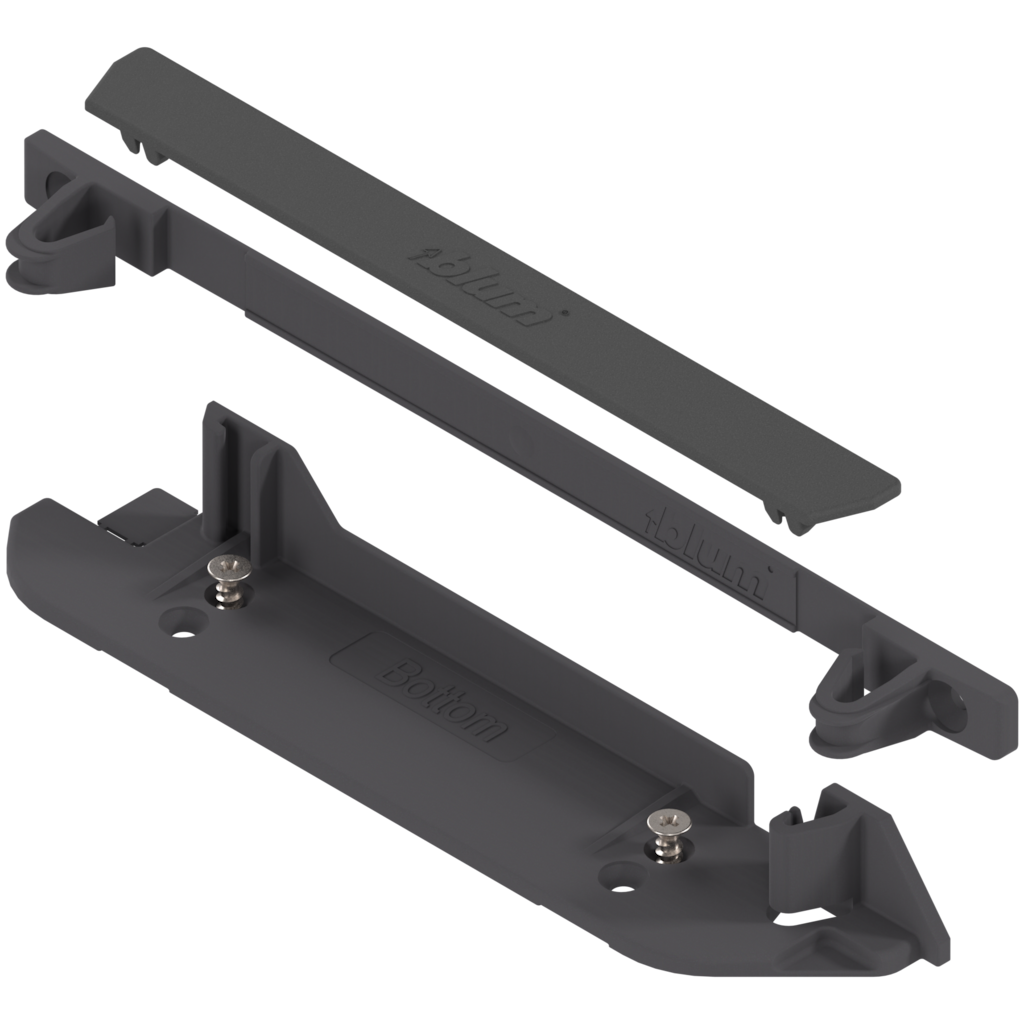

SERVO-DRIVE Bracket profile attachment set back/bottom

SERVO-DRIVE Bracket profile attachment set back/bottom
SERVO-DRIVE Bracket profile attachment set back/bottom
Ident no: 05219875
Part no.: Z10D01EA.01TPA U+H+A TGR
Box qty: 1 pc
  • type: Bracket profile attachment set
  • side position: left/right
  • installation position: back/bottom

SERVO-DRIVE Bracket profile attachment set back/bottom

  • type: Bracket profile attachment set
  • side position: left/right
  • installation position: back/bottom
Ident no: 05219875 Part no.: Z10D01EA.01TPA U+H+A TGR Box qty: 1 pc
error_outline

Please log in to see prices and availability.
info Product information expand_more

Product information

The bracket profile attachment is used to fix the bracket profile to vertical cross members in the cabinet.
  • Quick installation and secure retention in the hole due to split dowels
description Technical data expand_more

Technical data

type
Bracket profile attachment set
side position
left/right
installation position
back/bottom
length
183 mm
width
35 mm
