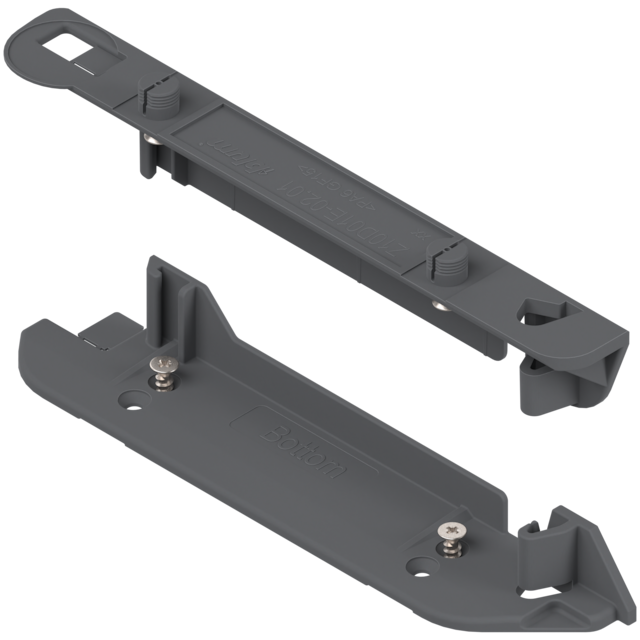

SERVO-DRIVE bracket profile attachment set bottom

SERVO-DRIVE bracket profile attachment set bottom
SERVO-DRIVE bracket profile attachment set bottom
Ident no: 03061821
Part no.: Z10D01E0.01TPR-AUF V1R737
Box qty: 1 pc
  • type: bracket profile attachment set
  • installation position: bottom
  • side position: left/right

SERVO-DRIVE bracket profile attachment set bottom

  • type: bracket profile attachment set
  • installation position: bottom
  • side position: left/right
Ident no: 03061821 Part no.: Z10D01E0.01TPR-AUF V1R737 Box qty: 1 pc
error_outline

Please log in to see prices and availability.
info Product information expand_more

Product information

  • check_circle_outline Quick installation and secure retention in the hole due to split dowels
The bracket profile attachment is used to fix the bracket profile to vertical cross members in the cabinet.
description Technical data expand_more

Technical data

type
bracket profile attachment set
installation position
bottom
side position
left/right
length
183 mm
width
35 mm
