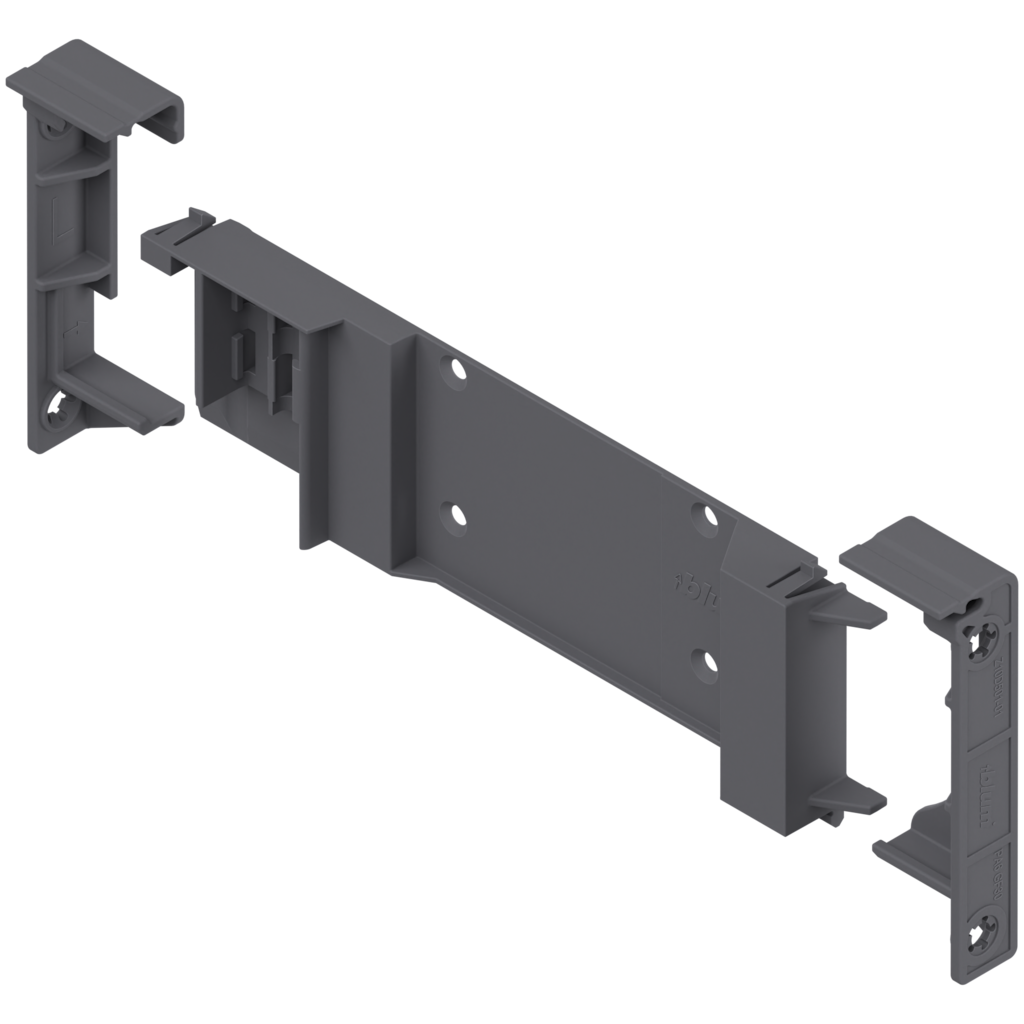

SERVO-DRIVE bracket profile attachment set side mounted

SERVO-DRIVE bracket profile attachment set side mounted
SERVO-DRIVE bracket profile attachment set side mounted
Ident no: 07867370
Part no.: Z10D5210 TPR-A RLV1R737
Box qty: 1 pc
  • type: bracket profile attachment set
  • installation position: side mounted
  • side position: right

SERVO-DRIVE bracket profile attachment set side mounted

  • type: bracket profile attachment set
  • installation position: side mounted
  • side position: right
Ident no: 07867370 Part no.: Z10D5210 TPR-A RLV1R737 Box qty: 1 pc
error_outline

Please log in to see prices and availability.
description Technical data expand_more

Technical data

type
bracket profile attachment set
installation position
side mounted
side position
right
length
85 mm
width
20.3 mm
