SERVO-DRIVE connecting node

chevron_left Back

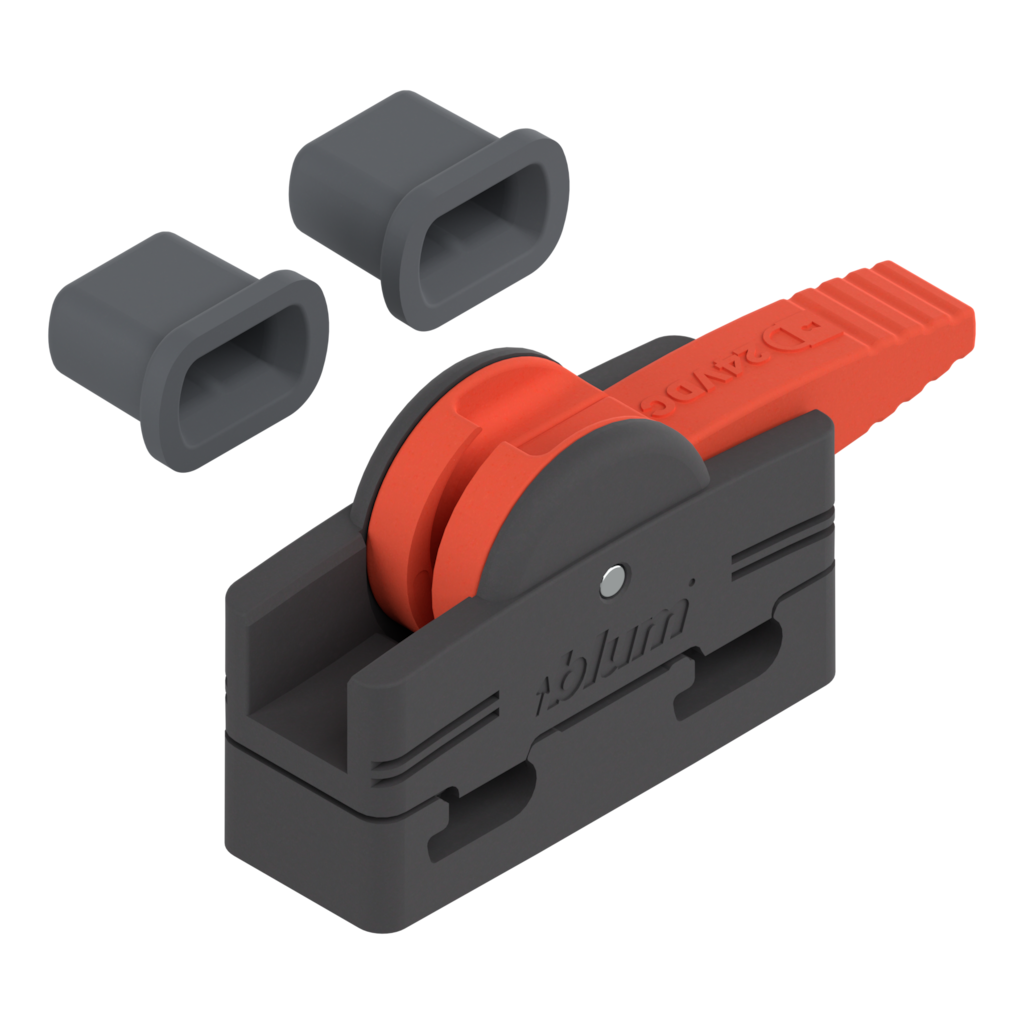

SERVO-DRIVE connecting node
SERVO-DRIVE connecting node (Set), tool-free assembly, orange/black
Ident no: 08820285
Part no.: Z10V100E.01KNO+END V1OR/S
Box qty: 1 pc
  • colour/surface: orange/black

SERVO-DRIVE connecting node (Set), tool-free assembly, orange/black

Ident no: 08820285 Part no.: Z10V100E.01KNO+END V1OR/S Box qty: 1 pc
  • colour/surface: orange/black
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

The connecting node establishes the electrical connection between the SERVO-DRIVE distribution cable or bracket profile and the power supply unit.
description Technical data expand_more

Technical data

type
connecting node
colour/surface
orange/black
fixing method
clip-on
height
10 mm
box systems
SERVO-DRIVE
