SERVO-DRIVE drive unit

chevron_left Back

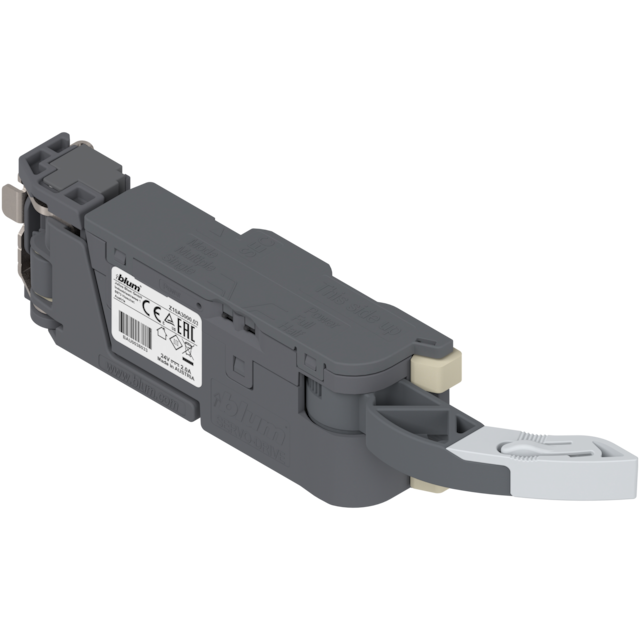

SERVO-DRIVE drive unit
SERVO-DRIVE drive unit
Ident no: 06970029
Part no.: Z10A3000.03ANTR-EH V1R737
Box qty: 1 pc
  • colour/surface: RAL 7037 dust grey
SERVO-DRIVE drive unit, suitable for COMBOX, R7037 dust grey
Ident no: 06970029 Part no.: Z10A3000.03ANTR-EH V1R737 Box qty: 1 pc
  • colour/surface: RAL 7037 dust grey
error_outline

Please log in to see prices and availability.

  • description Technical data
  • CAD/CAM data
description Technical data expand_more

Technical data

type
drive unit
box systems
SERVO-DRIVE
runner system
SERVO-DRIVE
input voltage
24 V
electric voltage
direct current
CAD/CAM data expand_more
Almost there!

Almost there!

Register now and get free CAD/CAM data download for this product.
