SERVO-DRIVE drive unit HK top

chevron_left Back

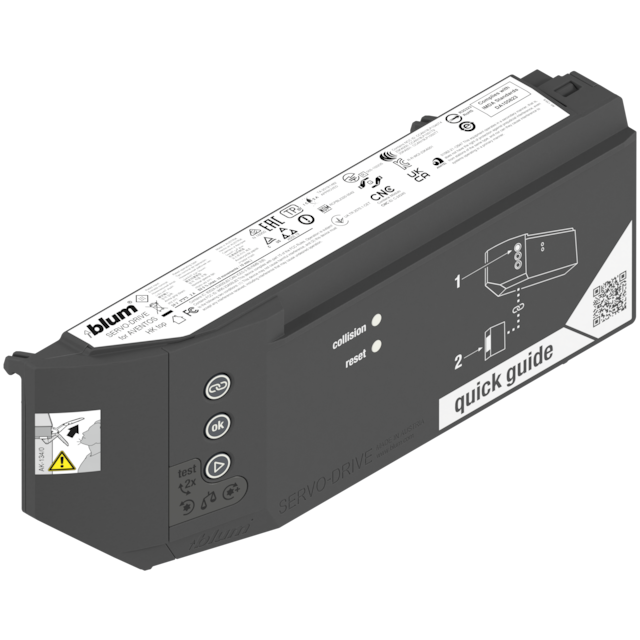

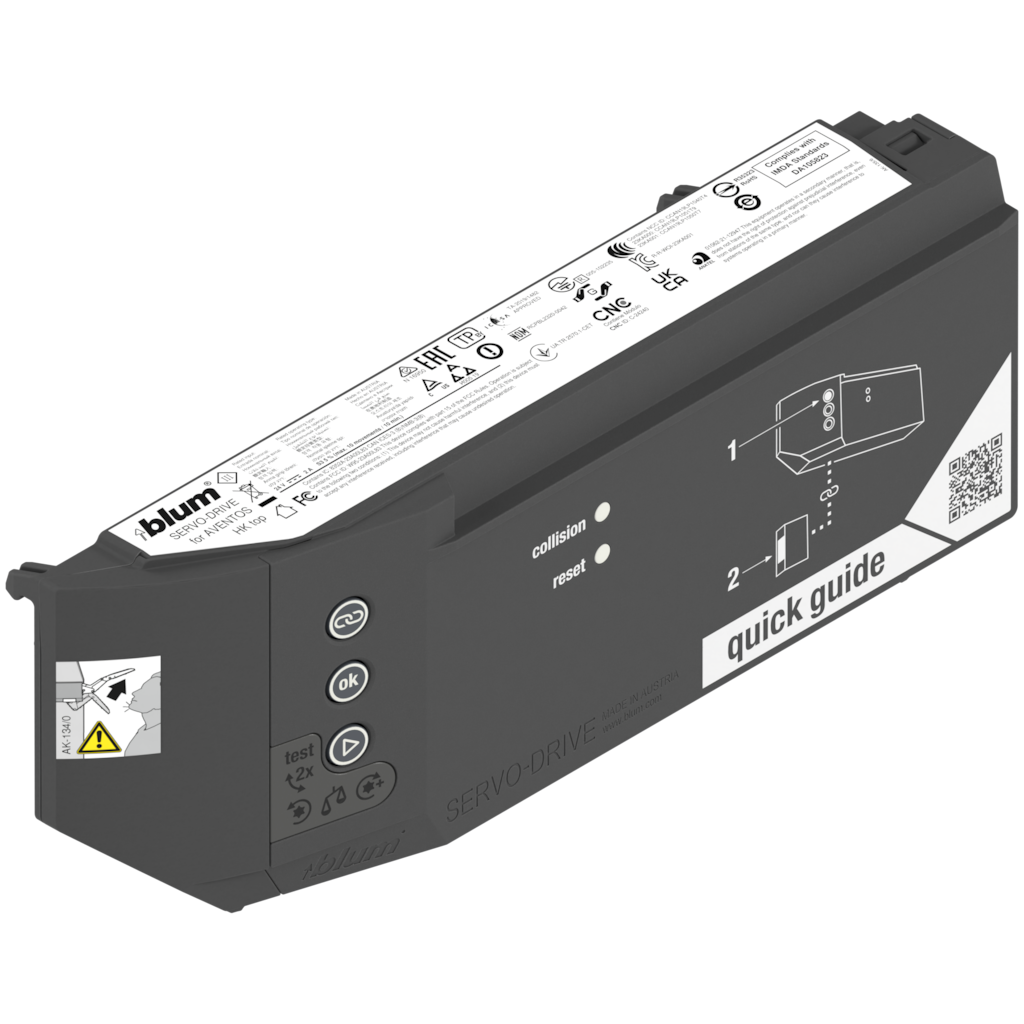

SERVO-DRIVE drive unit HK top
SERVO-DRIVE drive unit HK top
Ident no: 04694624
Part no.: 23KA001 ANTR-EH V5 TGR
Box qty: 5 pcs
  • colour/surface: dark grey
SERVO-DRIVE for AVENTOS drive unit, HK top, deep grey
Ident no: 04694624 Part no.: 23KA001 ANTR-EH V5 TGR Box qty: 5 pcs
  • colour/surface: dark grey
error_outline

Please log in to see prices and availability.

  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

The SERVO-DRIVE drive unit is attached to the left lift mechanism and opens wall cabinet fronts electrically.
description Technical data expand_more

Technical data

type
drive unit
box systems
SERVO-DRIVE
runner system
SERVO-DRIVE
suitable for lift system type
HK top
input voltage
24 V
