Shoulder screw length 14 mm

chevron_left Back

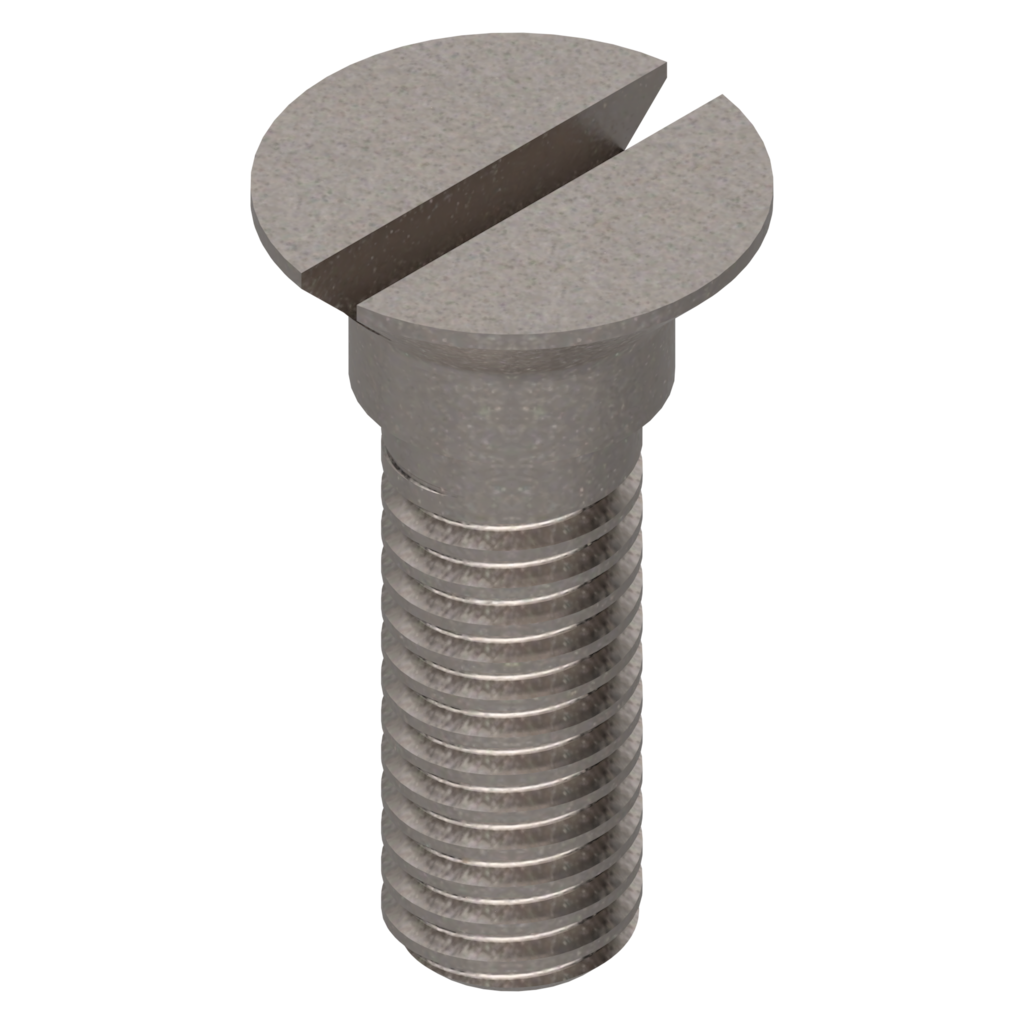

Shoulder screw length 14 mm
Shoulder screw, counter sunk head, ØM4, length of thread: 9.3 mm, Nickel plated
Ident no: 01746113
Part no.: 612.2010 A-SCH 50 NI
Box qty: 50 pcs
  • screw system: slot
  • head shape: counter sunk head
  • thread diameter: 4 mm
  • length: 14 mm
  • colour/surface: nickel plated

Shoulder screw, counter sunk head, ØM4, length of thread: 9.3 mm, Nickel plated

Ident no: 01746113 Part no.: 612.2010 A-SCH 50 NI Box qty: 50 pcs
  • screw system: slot
  • head shape: counter sunk head
  • thread diameter: 4 mm
  • length: 14 mm
  • colour/surface: nickel plated
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Ansatzschrauben (auch Passschrauben genannt) haben eine besondere Form. Ihr Gewinde beginnt nicht unmittelbar am Schraubenkopf, sondern zwischen Kopf und Gewinde ist ein zylindrischer, glatter Ansatz, der größer ist als das Gewinde selbst. Sie eignen sich zum passgenauen Zentrieren von zwei verschiedenen Montageplatten auf dünnen Korpusseiten.
description Technical data expand_more

Technical data

type
shoulder screw
screw system
slot
head shape
counter sunk head
thread shape
metric ISO thread
thread diameter
4 mm
