Template case

chevron_left Back
Template case

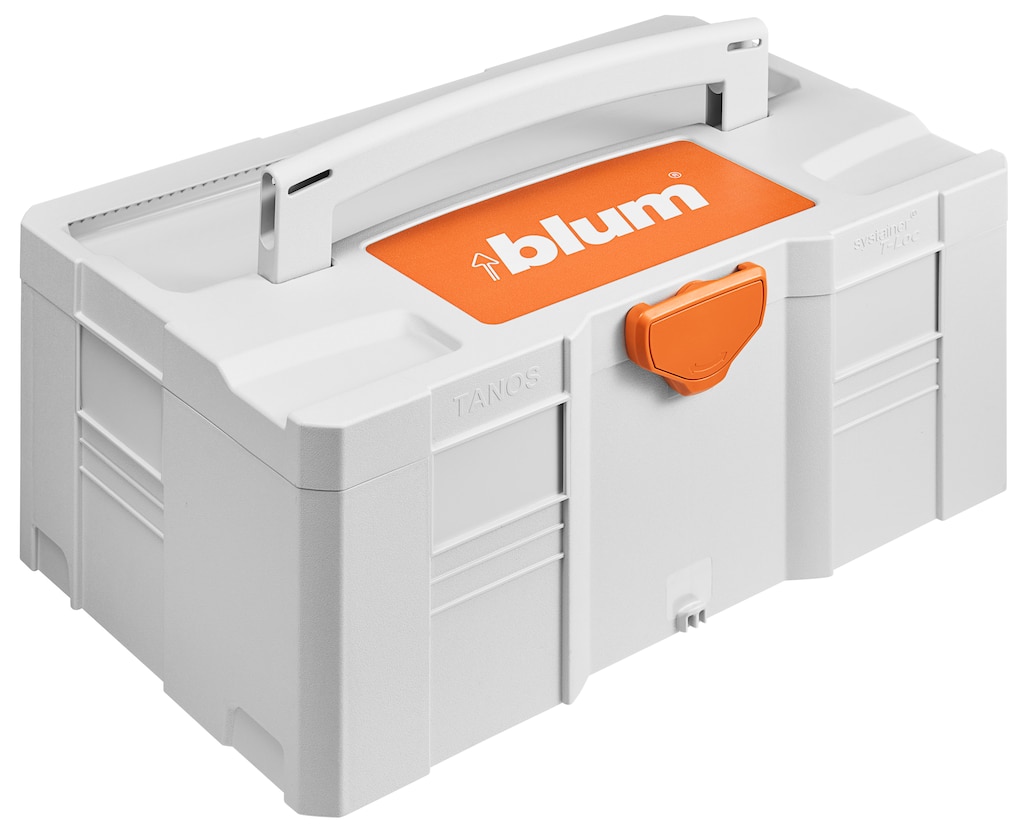

Template case, for hinges
Ident no: 01810070
Part no.: VH-002/1ALL STARTER KIT
Box qty: 1 pc

Template case, for hinges

Ident no: 01810070 Part no.: VH-002/1ALL STARTER KIT Box qty: 1 pc
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Simple and precise transfer of measurements: templates and tools support the assembly of all Blum products. They have proven to be the very best aids when it comes to day-to-day assembly. They are a perfect combination of high precision and practical value which is greatly appreciated both in workshops and directly on site.
description Technical data expand_more

Technical data

type
template case
colour/surface
RAL 7001 silver grey
drilling and processing direction
vertical drilling
scope of delivery
1x ECODRILL, 1x chuck, 8x drill bit, 5x drilling depth stop, 3x drilling template, 3x hexagon head screw, 6x screwdriver, 2x spacer, 1x spanner, 3x template
template suitable for
hinge systems
