Template for CLIP hinges and mounting plates

chevron_left Back

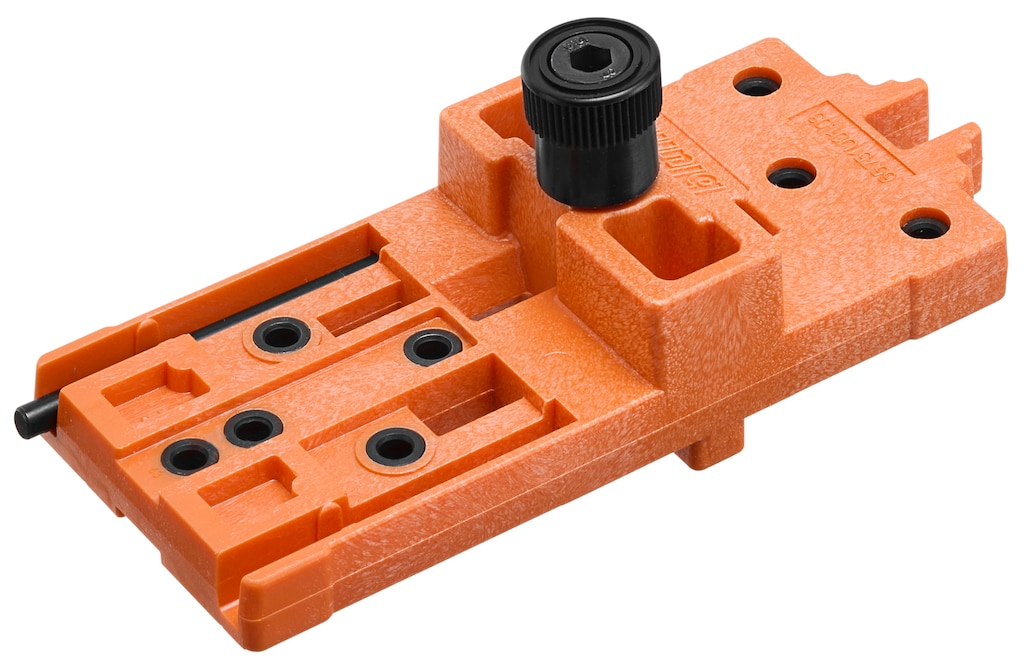

Template for CLIP hinges and mounting plates
Template, for CLIP mounting plates / CLIP furniture hinges, Orange
Ident no: 05582485
Part no.: 65.7510.03LEHR-KOERP OR
Box qty: 1 pc
  • type: template

Template, for CLIP mounting plates / CLIP furniture hinges, Orange

Ident no: 05582485 Part no.: 65.7510.03LEHR-KOERP OR Box qty: 1 pc
  • type: template
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Einfache und exakte Maßübertragung: Lehren und Werkzeuge unterstützen bei der Verarbeitung aller Blum-Produkte. Sie haben sich als Helfer bei der Montage bestens bewährt. Sowohl in der Werkstatt als auch beim Kunden vor Ort wird die Kombination von Präzision und praktischem Nutzen sehr geschätzt.
description Technical data expand_more

Technical data

type
template
colour/surface
orange
material
nylon/steel
scope of delivery
1x Gauge set
template suitable for
CLIP hinges and mounting plates
