Template for lift mechanisms, mounting and adapter plates

chevron_left Back
Template for lift mechanisms, mounting and adapter plates

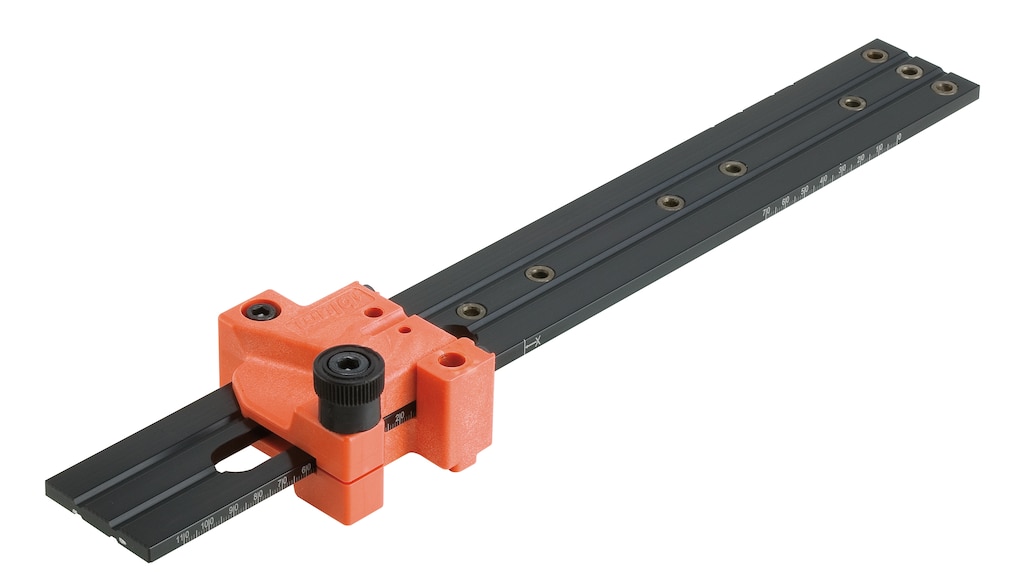

Template, for Universal rod template, for 955.TIP-ON and 970.BLUMOTION adapter plates (cruciform and horiz.) / AVENTOS lift mechanism / cruciform mounting plates / mounting plates
Ident no: 09027791
Part no.: 65.1001.01LEHR-KOERP
Box qty: 1 pc

Template, for Universal rod template, for 955.TIP-ON and 970.BLUMOTION adapter plates (cruciform and horiz.) / AVENTOS lift mechanism / cruciform mounting plates / mounting plates

Ident no: 09027791 Part no.: 65.1001.01LEHR-KOERP Box qty: 1 pc
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Einfache und exakte Maßübertragung: Lehren und Werkzeuge unterstützen bei der Verarbeitung aller Blum-Produkte. Sie haben sich als Helfer bei der Montage bestens bewährt. Sowohl in der Werkstatt als auch beim Kunden vor Ort wird die Kombination von Präzision und praktischem Nutzen sehr geschätzt.
description Technical data expand_more

Technical data

type
template
material
nylon/aluminium
scope of delivery
1x Gauge set
template suitable for
lift mechanisms, mounting and adapter plates
type of template
template
CAD/CAM data expand_more
Almost there!

Almost there!

Register now and get free CAD/CAM data download for this product.

person Log in Register now
SpinnerBlum CAD/CAM
