TIP-ON BLUMOTION synchronisation linkage fixing

chevron_left Back

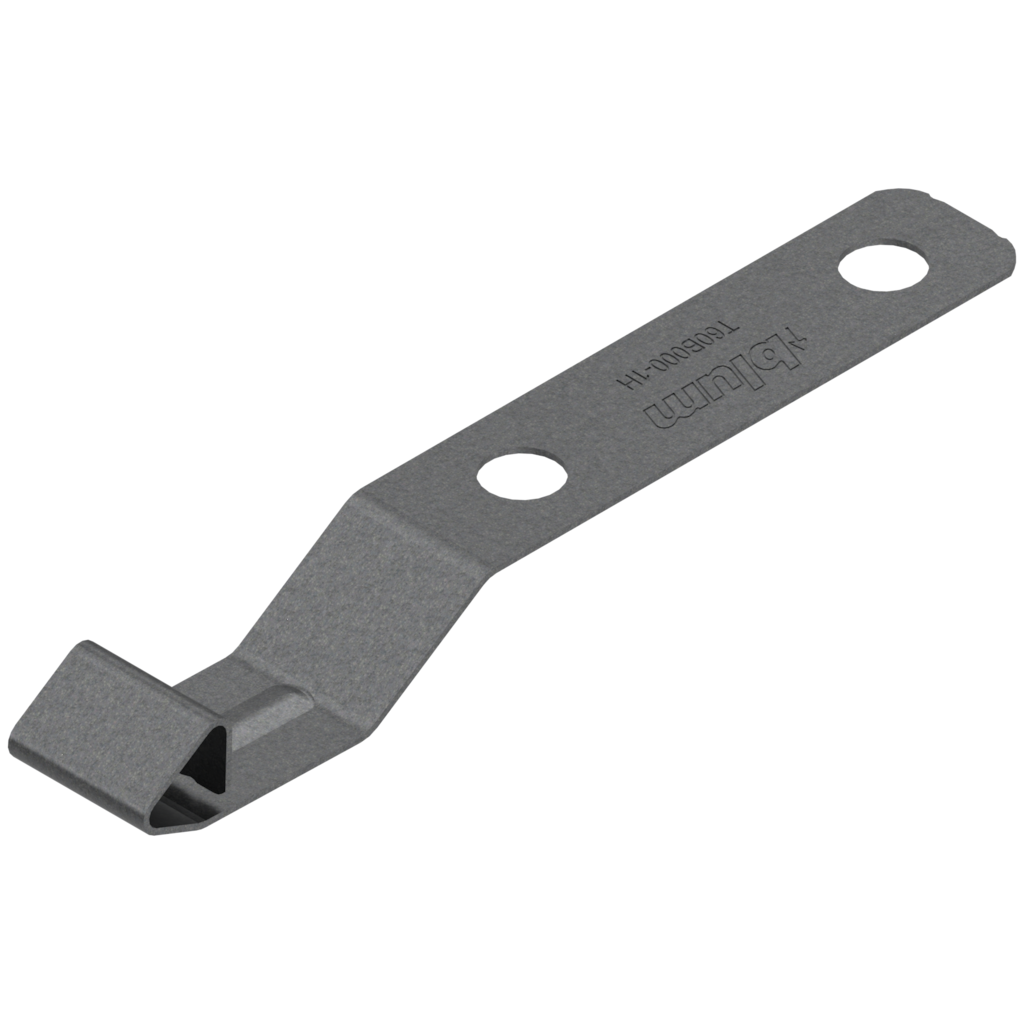

TIP-ON BLUMOTION synchronisation linkage fixing
TIP-ON BLUMOTION synchronisation linkage fixing
Ident no: 05690481
Part no.: T60B000H SW-HA 250 BL
Box qty: 250 pcs
  • type: TIP-ON BLUMOTION synchronisation linkage fixing
  • material: steel
TIP-ON BLUMOTION synchronisation shaft holder, self colour
Ident no: 05690481 Part no.: T60B000H SW-HA 250 BL Box qty: 250 pcs
  • type: TIP-ON BLUMOTION synchronisation linkage fixing
  • material: steel
error_outline

Please log in to see prices and availability.

  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

The synchronisation linkage fixing ensures that the synchronisation linkage responsible for the synchronisation of the TIP-ON BLUMOTION unit remains in a stable position and works correctly. The synchronisation ensures a smooth motion even with wide pull-outs, regardless of where the pull-out is touched to trigger the TIP-ON opening support system. The synchronisation linkage fixing is used for cabinet widths over 750 mm and for pull-outs above the cabinet base or cross member.
description Technical data expand_more

Technical data

type
TIP-ON BLUMOTION synchronisation linkage fixing
material
steel
colour/surface
blank
scope of delivery
1x synchronisation linkage fixing
