TIP-ON synchronisation linkage

chevron_left Back

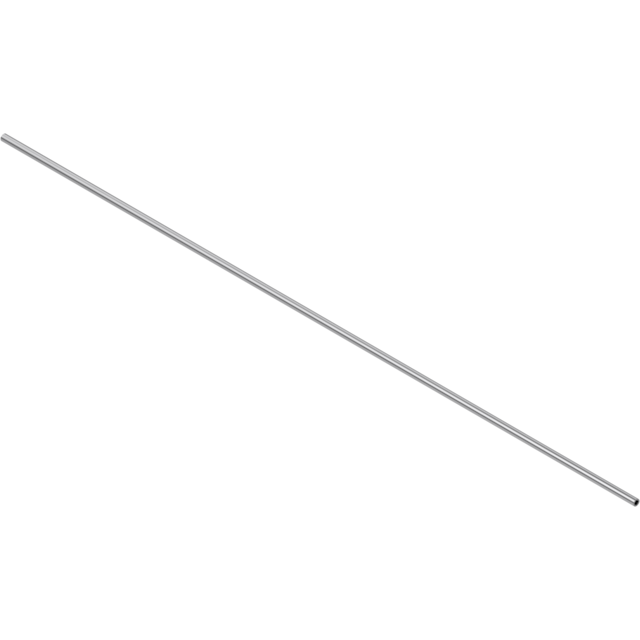

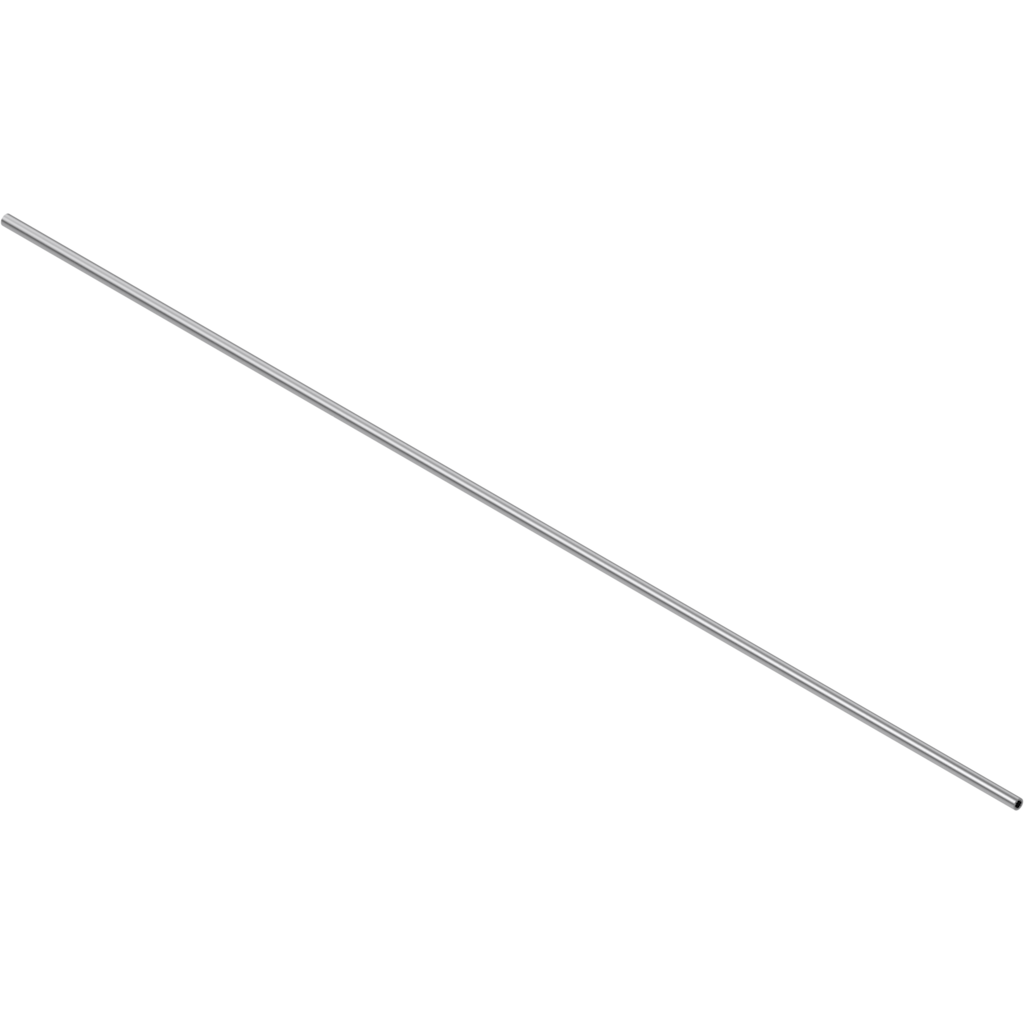

TIP-ON synchronisation linkage
TIP-ON synchronisation linkage, length=1160 mm, MOVENTO / LEGRABOX / pull-out shelf lock, for cutting to size
Ident no: 05075934
Part no.: ZST.1160W WELLE V40 ROH
Box qty: 40 pcs
  • type: TIP-ON synchronisation linkage
  • material: aluminium
  • colour/surface: natural

TIP-ON synchronisation linkage, length=1160 mm, MOVENTO / LEGRABOX / pull-out shelf lock, for cutting to size

Ident no: 05075934 Part no.: ZST.1160W WELLE V40 ROH Box qty: 40 pcs
  • type: TIP-ON synchronisation linkage
  • material: aluminium
  • colour/surface: natural
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Eine Synchronisierungswelle wird in Box- oder Führungssystemen verwendet, um die gleichmäßige und synchronisierte Bewegung beider Führungsschienen bzw. Korpusschienen zu gewährleisten. Sie verbindet rechte und linke Schiene und sorgt dafür, dass beide synchron laufen. Dadurch wird ein sanftes und gleichmäßiges Öffnen und Schließen der Schubladen, auch bei einseitiger Belastung und bei breiten Fronten, ermöglicht. Der Einsatz einer Synchronisierung bei Auszügen, wovon die Welle ein zentraler Bestandteil ist, ist demnach zu empfehlen. Mit dieser TIP-ON Synchronisierungswelle ist darüber hinaus eine Tablar-Arretierung einhändig entriegelbar.
description Technical data expand_more

Technical data

type
TIP-ON synchronisation linkage
shape
Round
length
1160 mm
can be cut to size
yes
material
aluminium
