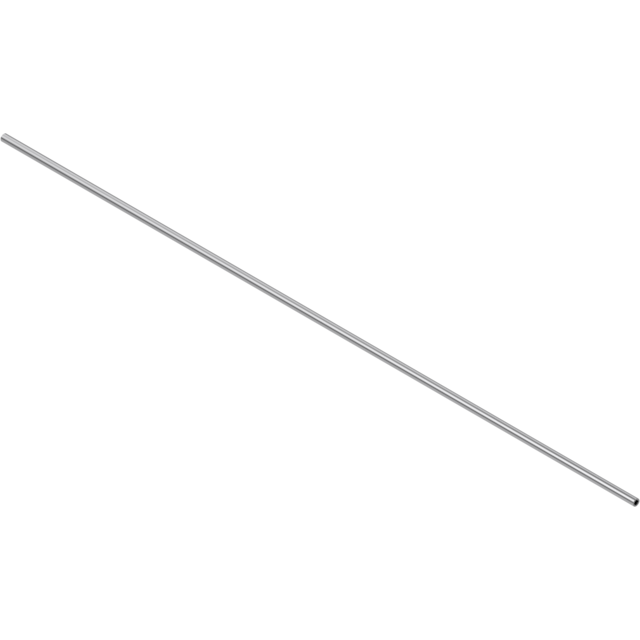

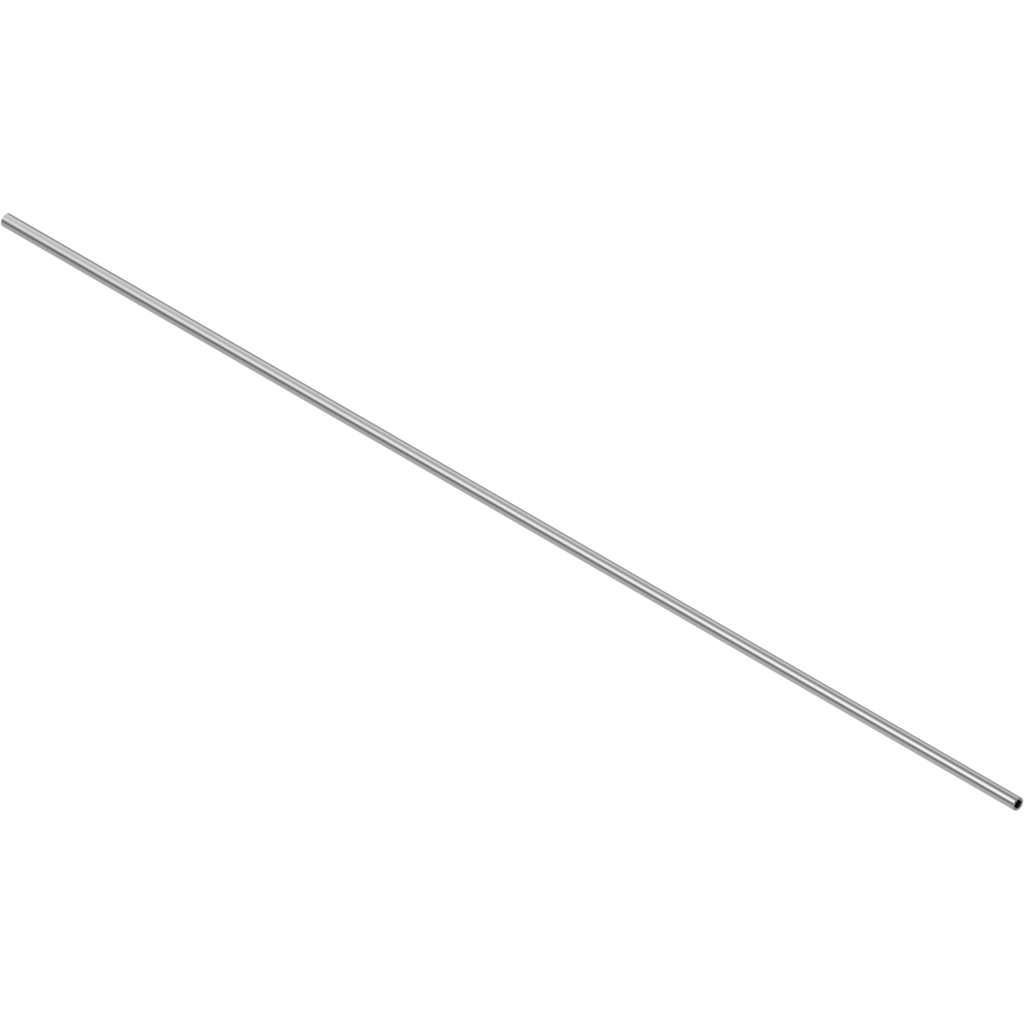

TIP-ON synchronisation linkage
TIP-ON synchronisation linkage
Ident no: 06371115
Part no.: ZST.1089W WELLE V40 ROH
Box qty: 40 pcs
  • type: TIP-ON synchronisation linkage
  • material: aluminium
  • colour/surface: natural
TIP-ON synchronisation linkage, length=1089 mm, MOVENTO / TANDEM / TANDEM TIP-ON / pull-out shelf lock, for cutting to size
Ident no: 06371115 Part no.: ZST.1089W WELLE V40 ROH Box qty: 40 pcs
  • type: TIP-ON synchronisation linkage
  • material: aluminium
  • colour/surface: natural
error_outline

Please log in to see prices and availability.

  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

A synchronisation linkage is used in box or runner systems to guarantee the regular, synchronised motion of both runner or cabinet profiles. It connects the right and left profile and ensures that both run synchronously. This enables soft and uniform opening and closing of the drawers, even with an uneven load distribution and wide fronts. As such, the use of synchronisation with pull-outs (of which the linkage is a key component) is highly recommended. Furthermore, using this TIP-ON synchronisation linkage allows a pull-out shelf lock to be unlocked with one hand.
description Technical data expand_more

Technical data

type
TIP-ON synchronisation linkage
shape
Round
length
1089 mm
can be cut to size
yes
material
aluminium
