Trigger guidance

chevron_left Back
Trigger guidance

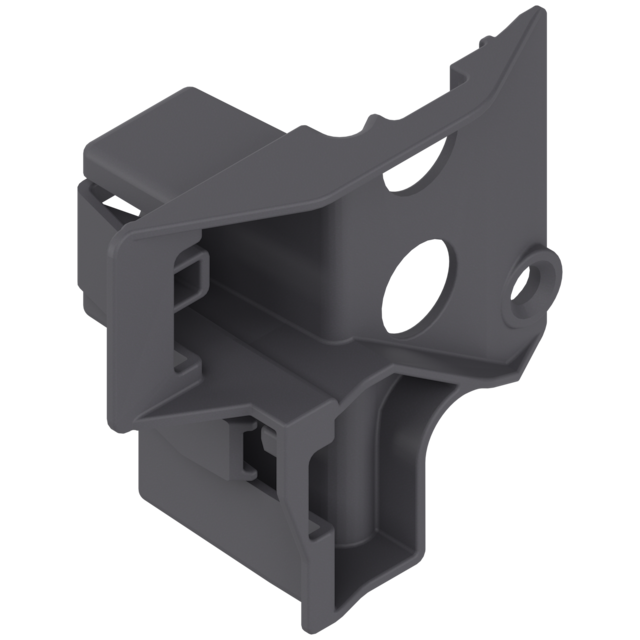

SERVO-DRIVE lever guide, R7037 dust grey
Ident no: 07472980
Part no.: Z10A3H00 HEB-FUE 50R737
Box qty: 50 pcs
  • colour/surface: RAL 7037 dust grey

SERVO-DRIVE lever guide, R7037 dust grey

Ident no: 07472980 Part no.: Z10A3H00 HEB-FUE 50R737 Box qty: 50 pcs
  • colour/surface: RAL 7037 dust grey
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

The trigger guidance for TANDEMBOX prevents the lever from colliding with the back fixing on drawers with a chipboard back and an internal cabinet width of between 242 and 316 mm.
description Technical data expand_more

Technical data

type
trigger guidance
colour/surface
RAL 7037 dust grey
scope of delivery
1x trigger guidance
