Universal drilling template

chevron_left Back

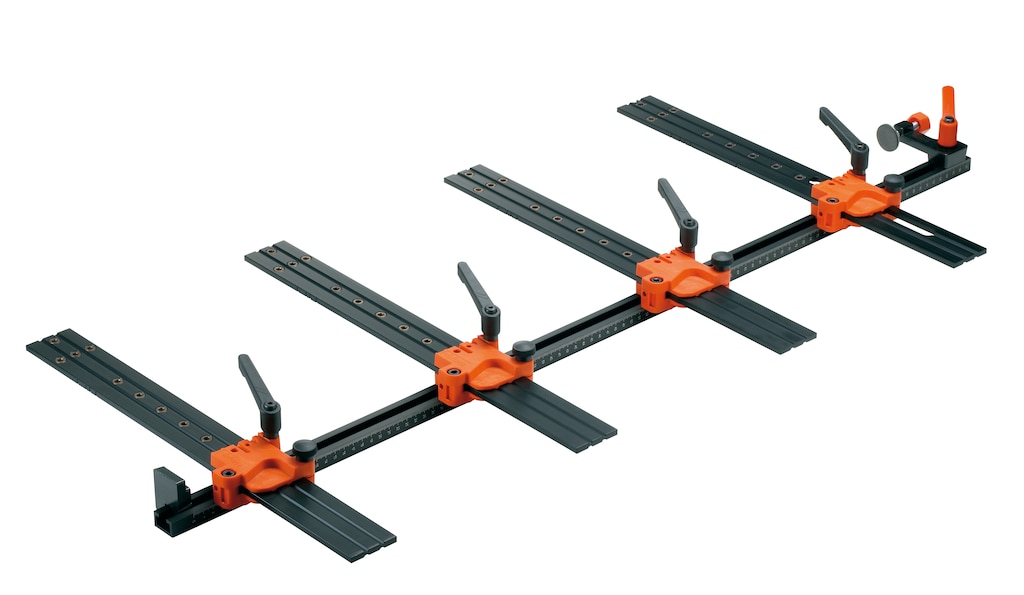

Universal drilling template
Universal drilling template
Ident no: 09027861
Part no.: 65.1000.01STAN-LEHRE
Box qty: 1 pc
  • type: universal drilling template
Universal rod template
Ident no: 09027861 Part no.: 65.1000.01STAN-LEHRE Box qty: 1 pc
  • type: universal drilling template
error_outline

Please log in to see prices and availability.

  • description Technical data
  • CAD/CAM data
description Technical data expand_more

Technical data

type
universal drilling template
length
1000 mm
material
nylon/aluminium
scope of delivery
1x Gauge set, 1x Operating instructions
type of template
universal drilling template
