Universal drilling template for box and runner system gallery, lift systems

chevron_left Back

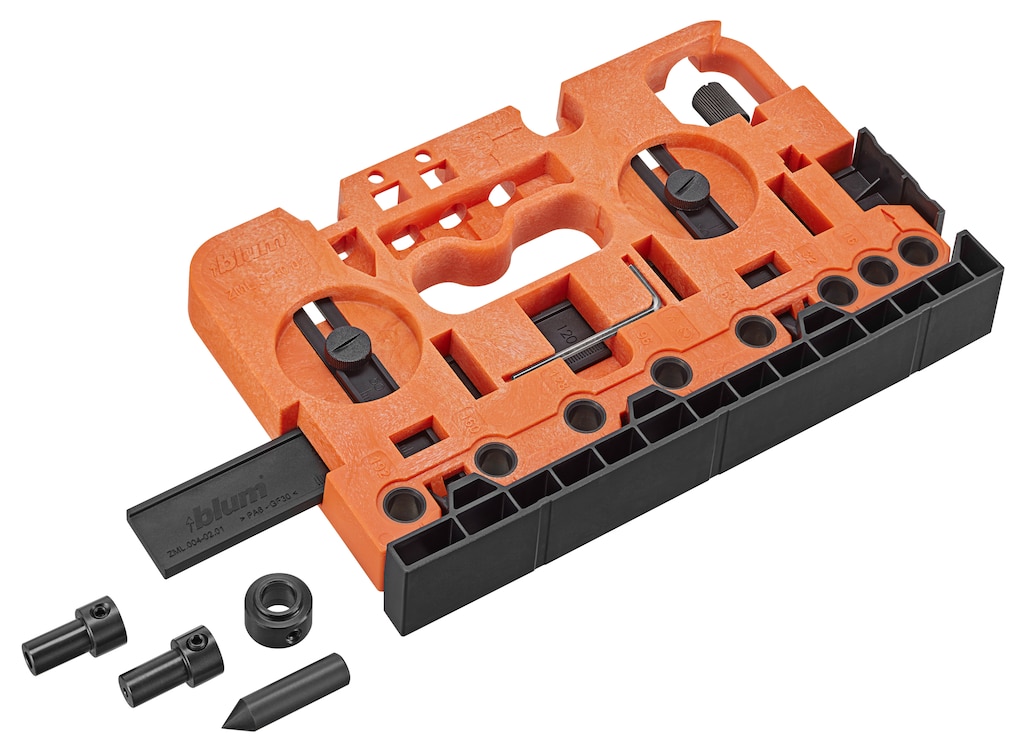

Universal drilling template for box and runner system gallery, lift systems
Universal drilling template, for AVENTOS, TANDEMBOX intivo/TANDEMBOX plus, METABOX, TANDEM / LEGRABOX / MERIVOBOX / METABOX gallery / TANDEMBOX gallery, Orange
Ident no: 02234545
Part no.: ZML.0040.02BOHRLEHRE OR
Box qty: 1 pc
  • type: universal drilling template

Universal drilling template, for AVENTOS, TANDEMBOX intivo/TANDEMBOX plus, METABOX, TANDEM / LEGRABOX / MERIVOBOX / METABOX gallery / TANDEMBOX gallery, Orange

Ident no: 02234545 Part no.: ZML.0040.02BOHRLEHRE OR Box qty: 1 pc
  • type: universal drilling template
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Simple and precise transfer of measurements: templates and tools support the assembly of all Blum products. They have proven to be the very best aids when it comes to day-to-day assembly. They are a perfect combination of high precision and practical value which is greatly appreciated both in workshops and directly on site.
description Technical data expand_more

Technical data

type
universal drilling template
colour/surface
orange
material
nylon
scope of delivery
1x Operating instructions, 1x drilling template
template suitable for
box and runner system gallery, lift systems
