Universal individual template for lift mechanisms, runners, mounting and adapter plates

chevron_left Back

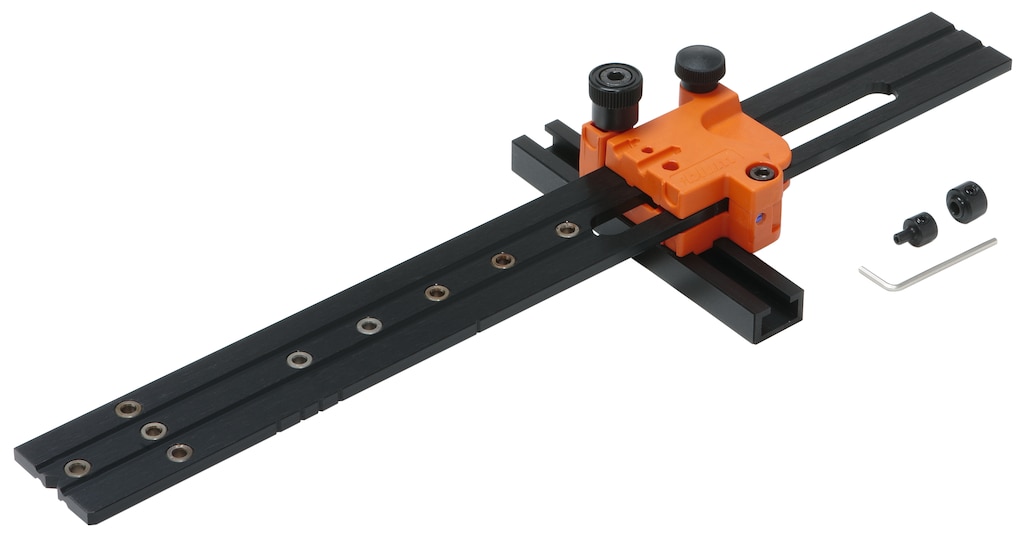

Universal individual template for lift mechanisms, runners, mounting and adapter plates
Universal-single template, for 955.TIP-ON and 970.BLUMOTION adapter plates (cruciform and horiz.) / AVENTOS lift mechanism / cruciform mounting plates / METABOX / MOVENTO cabinet profiles / mounting plates / TANDEM / TANDEMBOX
Ident no: 05093516
Part no.: 65.1051.02LEHRE
Box qty: 1 pc
  • type: universal individual template

Universal-single template, for 955.TIP-ON and 970.BLUMOTION adapter plates (cruciform and horiz.) / AVENTOS lift mechanism / cruciform mounting plates / METABOX / MOVENTO cabinet profiles / mounting plates / TANDEM / TANDEMBOX

Ident no: 05093516 Part no.: 65.1051.02LEHRE Box qty: 1 pc
  • type: universal individual template
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Simple and precise transfer of measurements: templates and tools support the assembly of all Blum products. They have proven to be the very best aids when it comes to day-to-day assembly. They are a perfect combination of high precision and practical value which is greatly appreciated both in workshops and directly on site.
description Technical data expand_more

Technical data

type
universal individual template
material
nylon/aluminium
scope of delivery
1x Operating instructions, 1x drilling template
template suitable for
lift mechanisms, runners, mounting and adapter plates
type of template
universal individual template
