Universal marking template for lift mechanisms, runners, mounting and adapter plates

chevron_left Back
Universal marking template for lift mechanisms, runners, mounting and adapter plates

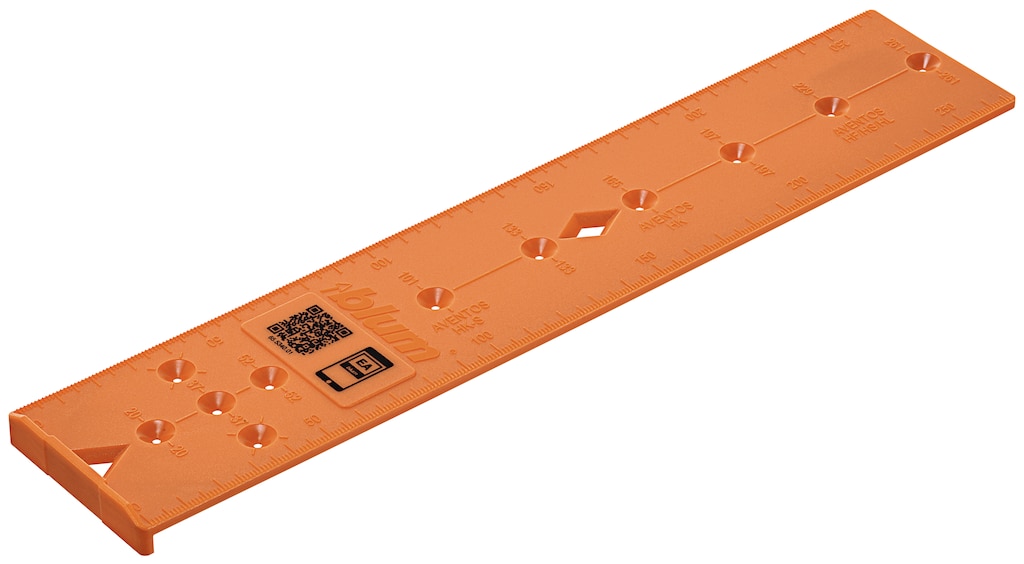

Universal marking template, for AVENTOS lift mechanism / LEGRABOX cabinet profiles / MOVENTO cabinet profiles / mounting plates / TANDEM cabinet profiles / TANDEMBOX carcase profiles / TIP-ON-mounting plates, Orange
Ident no: 09597484
Part no.: 65.5340.01AN-LEHR 24 OR
Box qty: 24 pcs
  • type: universal marking template

Universal marking template, for AVENTOS lift mechanism / LEGRABOX cabinet profiles / MOVENTO cabinet profiles / mounting plates / TANDEM cabinet profiles / TANDEMBOX carcase profiles / TIP-ON-mounting plates, Orange

Ident no: 09597484 Part no.: 65.5340.01AN-LEHR 24 OR Box qty: 24 pcs
  • type: universal marking template
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Einfache und exakte Maßübertragung: Lehren und Werkzeuge unterstützen bei der Verarbeitung aller Blum-Produkte. Sie haben sich als Helfer bei der Montage bestens bewährt. Sowohl in der Werkstatt als auch beim Kunden vor Ort wird die Kombination von Präzision und praktischem Nutzen sehr geschätzt.
description Technical data expand_more

Technical data

type
universal marking template
colour/surface
orange
length
248 mm
material
nylon
scope of delivery
1x marking template
